HOA0825-004
SENSOR OPT SLOT TRANS PCB MTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

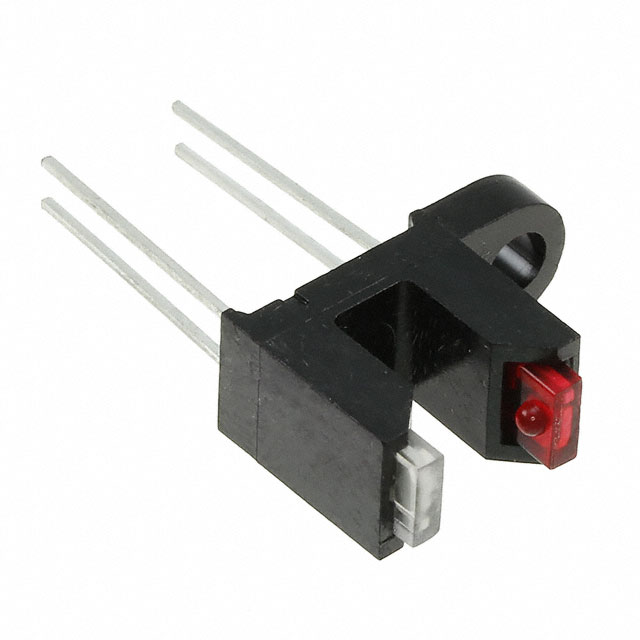

Honeywell Sensing and Productivity Solutions HOA0825-004 is a through-beam optical sensor designed for PCB mounting. This component features a transistor output configuration and a sensing distance of 0.165 inches (4.2mm). Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA, with a collector-emitter breakdown voltage (Vce) of 30 V. The sensor offers a response time of 15µs, making it suitable for applications requiring precise detection. Operating within an ambient temperature range of -40°C to 85°C, this sensor is commonly utilized in industrial automation, motion sensing, and position detection systems. The HOA0825-004 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.165"" (4.2mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Transistor |
| Response Time | 15µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
