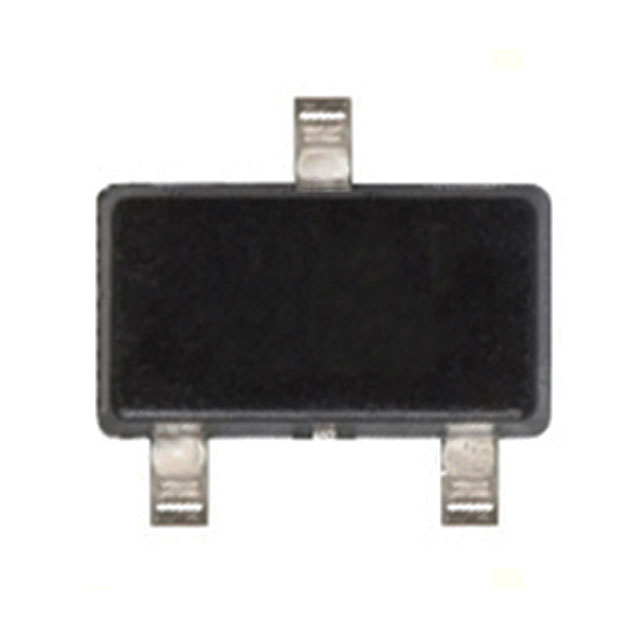

VF360NT
MAGNETIC SWITCH LATCH SOT23Manufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions VF360NT is a digital Hall Effect latching switch designed for surface mount applications. Packaged in a SOT-23-3 (TO-236-3, SC-59) configuration, this AEC-Q100 qualified component operates across a wide voltage supply range of 3V to 24V. It features an open-drain output with a maximum output current of 20mA and a supply current of 8mA. The VF360NT is sensitive to the south pole of a magnetic field, with a trip point of 5.5mT and a release point of -5.5mT. Its latching function ensures that the output state is maintained until a subsequent magnetic field change occurs. This component is suitable for demanding automotive applications and operates within an extended temperature range of -40°C to 150°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Latch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 5.5mT Trip, -5.5mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 8mA |
| Supplier Device Package | SOT-23 |
| Test Condition | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
