SS466A
MAGNETIC SWITCH LATCH RADIALManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More

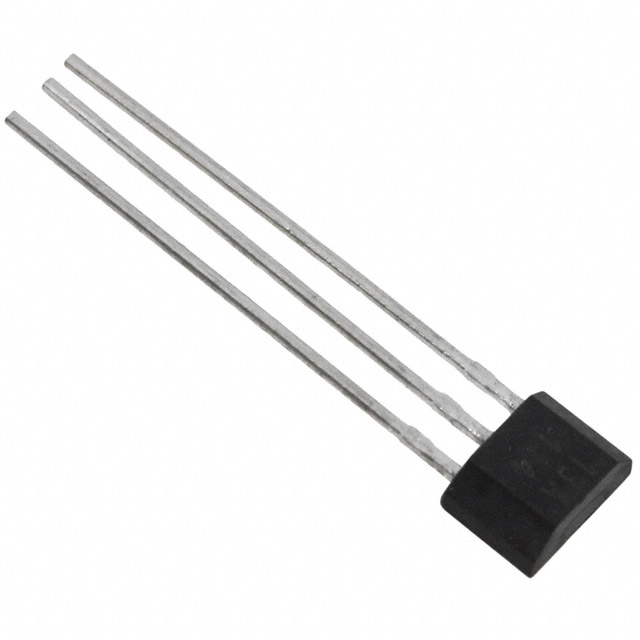

Honeywell Sensing and Productivity Solutions SS400 Series SS466A is a digital Hall effect sensor featuring a latching magnetic switch functionality with an open collector output. This radial lead component, packaged in a TO-226-3, TO-92-3 short body, offers robust performance across a wide operating temperature range of -40°C to 150°C. Key features include temperature compensation for consistent operation and a polarization sensitivity to the south pole. The device operates with a supply voltage from 3.8V to 30V, drawing a maximum of 10mA, and provides an output current capability of up to 20mA. Designed for reliable sensing, it exhibits a typical trip point of 18mT and a release point of -18mT. Applications for this component span industrial automation, automotive systems, and consumer electronics, where precise magnetic detection and switching are critical.
Additional Information
Series: SS400RoHS Status: Request inventory verificationManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3.8V ~ 30V |
| Technology | Hall Effect |
| Sensing Range | 18mT Trip, -18mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 10mA |
| Supplier Device Package | Radial Lead |
| Test Condition | 25°C |
