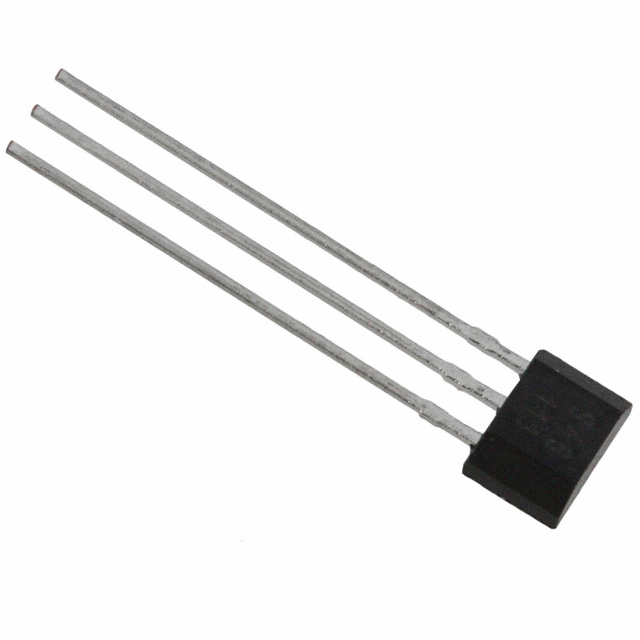

SS461D-L
SOLID STATE SENSORManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions SS46 Hall Effect digital switch, part number SS461D-L, is a latching sensor with an open collector output. This device operates with a supply voltage range of 4.5V to 24V, drawing a maximum of 9mA quiescent current and providing a maximum output current of 20mA. Featuring temperature compensation, the SS461D-L exhibits a typical trip magnetic flux density of 3.75mT and a release flux density of -3.75mT. Designed for through-hole mounting, it is supplied in a TO-92-3 package. This component is suitable for applications requiring magnetic field sensing and switching, including automotive systems, industrial automation, and consumer electronics. The device is polarized to respond to the south pole magnetic field.
Additional Information
Series: SS46RoHS Status: RoHS CompliantManufacturer Lead Time: 87 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | -55°C ~ 150°C |
| Voltage - Supply | 4.5V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 3.75mT Trip, -3.75mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 9mA |
| Supplier Device Package | TO-92-3 |
| Test Condition | 25°C |
| Grade | - |
| Qualification | - |
