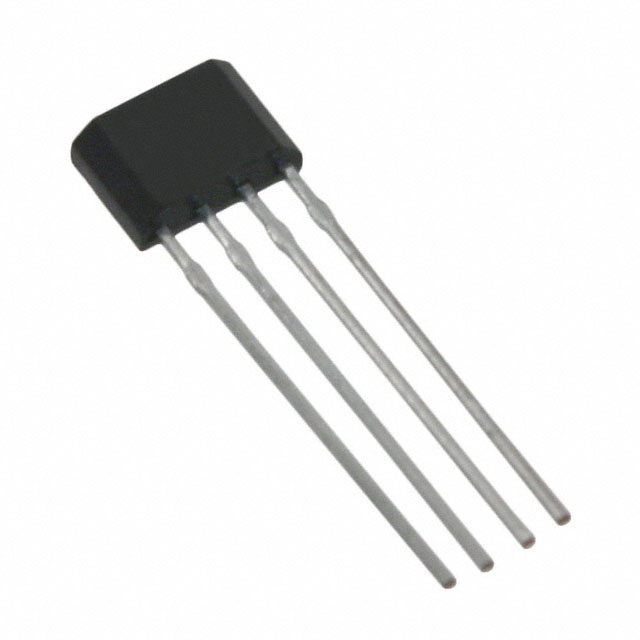

SS42R
MAGNETIC SWITCH LATCH 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SS42R is a digital Hall effect sensor featuring a latching magnetic switch function. This component utilizes a common collector, open drain output configuration and operates from a 4.5V to 16V supply voltage with a maximum supply current of 11mA. The SS42R series sensor is designed for through-hole mounting in a 4-SIP package and exhibits a sensing range of 35mT for tripping and -35mT for releasing, specifically responding to the south pole of a magnetic field. With a maximum output current of 10mA, it is suitable for applications requiring precise magnetic detection and switching in industrial automation, automotive systems, and consumer electronics. The device operates across a temperature range of 0°C to 100°C.
Additional Information
Series: SS42RRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP |
| Output Type | Common Collector, Open Drain |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | 0°C ~ 100°C (TA) |
| Voltage - Supply | 4.5V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | 35mT Trip, -35mT Release |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 11mA |
| Supplier Device Package | 4-SIP |
| Test Condition | 0°C ~ 100°C |
