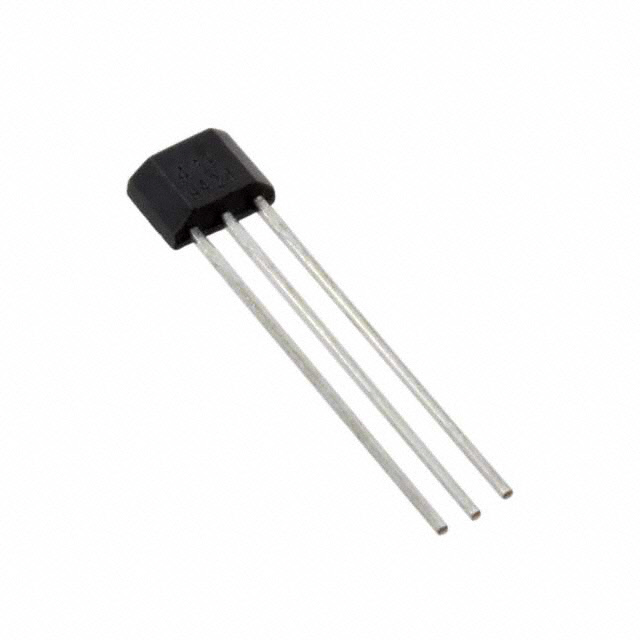

SS41-R
MAGNETIC SWITCH BIPOLAR RADIALManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SS41-R is a bipolar Hall effect switch featuring radial leads for through-hole mounting. This digital switch offers a robust solution for detecting magnetic fields with its open-drain output. Designed for operation across a wide temperature range from -40°C to 150°C, it supports supply voltages from 4.5V to 24V, with a maximum supply current of 15mA and a maximum output current of 20mA. The SS41-R exhibits a typical trip point of 15mT and a release point of -14mT, ensuring precise magnetic field sensing. Its polarization capabilities allow for detection of both north and south magnetic poles. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications where reliable magnetic switching is critical. The device is supplied in Tape & Reel packaging.
Additional Information
Series: SS41RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SIP |
| Output Type | Open Drain |
| Polarization | North Pole, South Pole |
| Mounting Type | Through Hole |
| Function | Bipolar Switch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 4.5V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 15mT Trip, -14mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 15mA |
| Supplier Device Package | Radial Lead |
| Test Condition | 25°C |
Request a Quote
Clients Also Buy
SS41
MAGNETIC SWITCH BIPOLAR RADIAL
SS41-L
MAGNETIC SWITCH BIPOLAR RADIAL

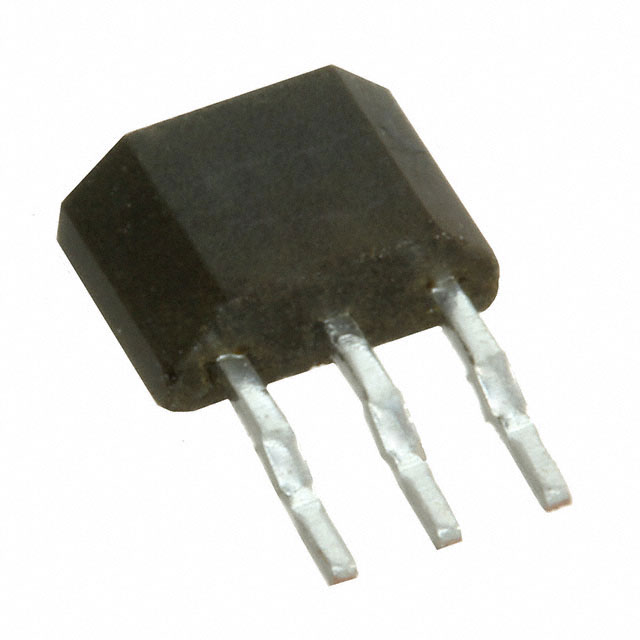

SS41-S
