SNG-SPRD-003
MAGNETIC SWITCH UNIPOLARManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More

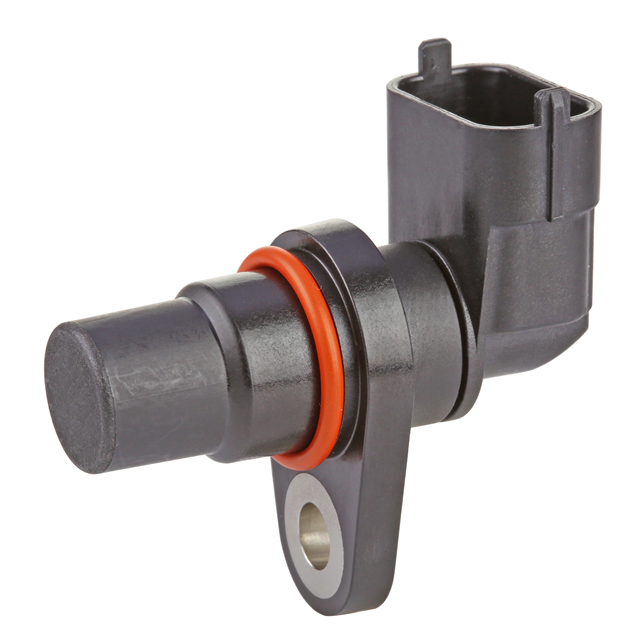

Honeywell Sensing and Productivity Solutions SNG-S Series digital unipolar Hall Effect magnetic switch, part number SNG-SPRD-003. This open collector output component operates from a 4.8V to 16V supply voltage with a maximum supply current of 15mA. The maximum output current is rated at 20mA. Designed for chassis mounting, the SNG-SPRD-003 features a broad operating temperature range of -40°C to 140°C. This component is utilized in industrial automation, automotive systems, and consumer electronics applications requiring precise magnetic field detection. The technology employed is Hall Effect with an open collector output type.
Additional Information
Series: SNG-SRoHS Status: RoHS CompliantManufacturer Lead Time: 71 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Module |
| Output Type | Open Collector |
| Polarization | - |
| Mounting Type | Chassis Mount |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 140°C |
| Voltage - Supply | 4.8V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | - |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 15mA |
| Supplier Device Package | - |
| Test Condition | - |
Request a Quote
Clients Also Buy

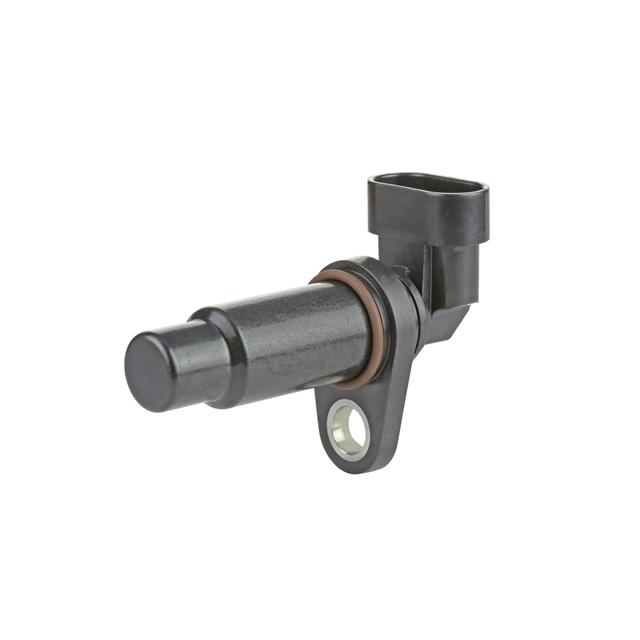

SNG-SPRC-001
HALL SENSOR,RIGHT ANGLE, 46MM

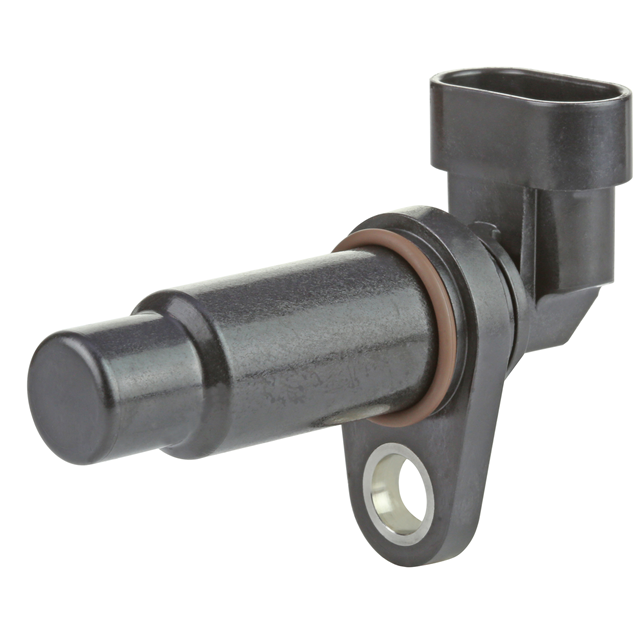

SNG-SPRC-002
