SM453R
MAGNETIC SWITCH OMNIPOLAR TO92-3Manufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More

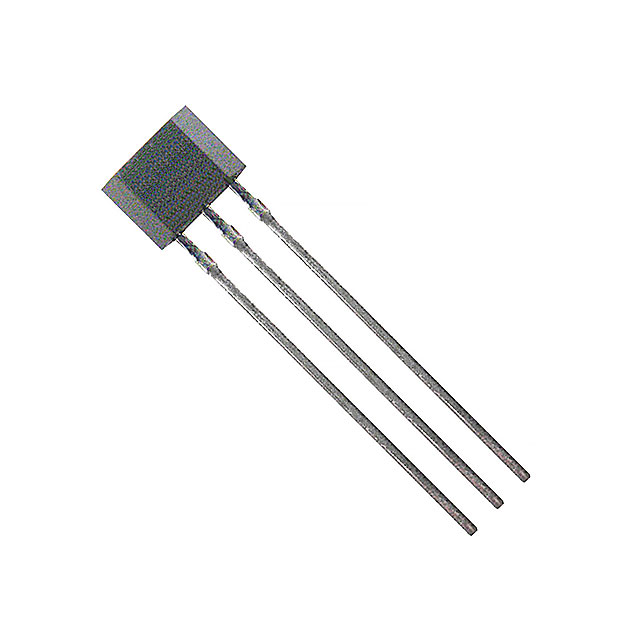

Honeywell Sensing and Productivity Solutions SM453R is a magnetoresistive omnipolar digital switch with an open collector output. This TO-92-3 packaged component operates from a 3V to 24V supply and draws a maximum of 5mA. The SM453R is designed to detect both north and south magnetic poles, with a typical trip sensing range of ±2mT and a release range of ±0.3mT. It features through-hole mounting and is suitable for operating temperatures from -40°C to 85°C. This device finds application in various industries including automotive, industrial automation, and consumer electronics for position sensing, limit switching, and speed detection. The SM453R is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Output Type | Open Collector |
| Polarization | North Pole, South Pole |
| Mounting Type | Through Hole |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 24V |
| Technology | Magnetoresistive |
| Sensing Range | ±2mT Trip, ±0.3mT Release |
| Current - Output (Max) | - |
| Current - Supply (Max) | 5mA |
| Supplier Device Package | TO-92-3 |
| Test Condition | -40°C ~ 85°C |
