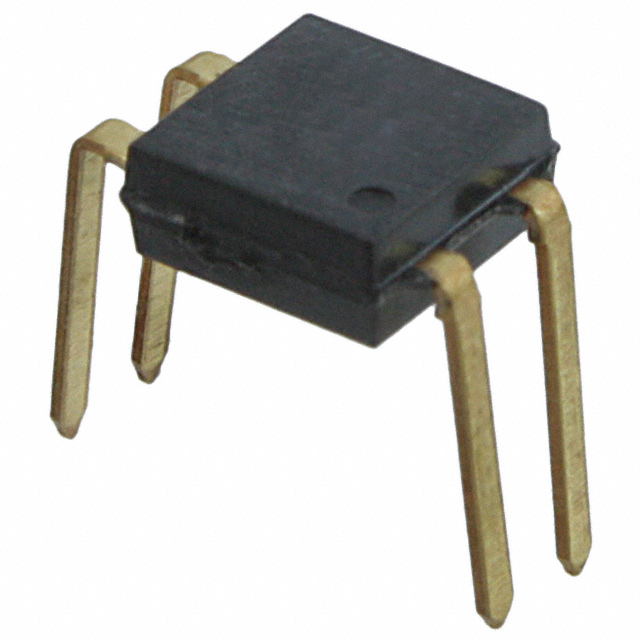

613SS4=NEW1
MAGNETIC SWITCH UNIPOLAR 4DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 613SS4-NEW1 is a unipolar Hall effect digital switch. This component features an open collector output and is housed in a 4-DIP package, facilitating through-hole mounting. Designed for robust operation, it offers a supply voltage range of 6V to 16V with a maximum supply current of 10mA and a maximum output current of 10mA. The sensing capabilities include a trip point of 49.5mT and a release point of 4mT, specifically responding to a South pole magnetic field. Operating reliably across an extended temperature range of -40°C to 150°C, this device is suitable for applications in automotive, industrial automation, and consumer electronics requiring precise magnetic field detection.
Additional Information
Series: 613SSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-DIP (0.157"", 4.00mm) |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 6V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | 49.5mT Trip, 4mT Release |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 10mA |
| Supplier Device Package | 4-DIP |
| Test Condition | -40°C ~ 150°C |
