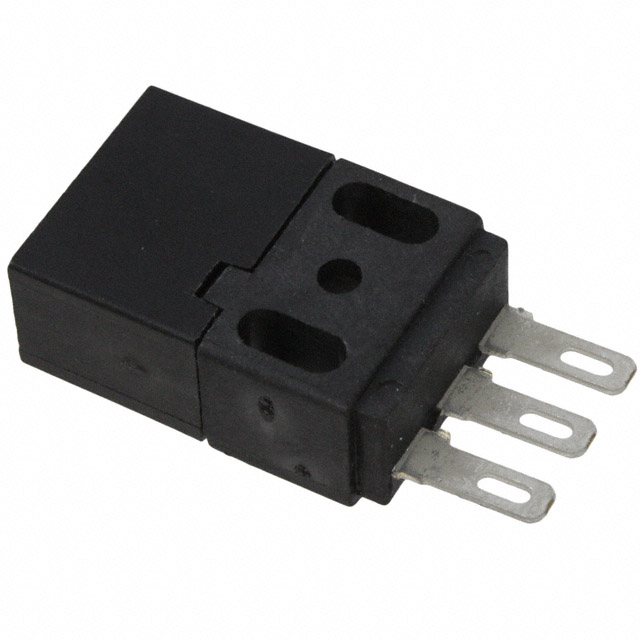

413SR10
MAGNETIC SWITCH UNIPOLAR 3SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Switches (Solid State)
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions 413SR10 is a unipolar Hall effect digital switch from the 400SR series. Featuring an open collector output, this component is designed for through-hole mounting within a 3-SIP package. It operates with a supply voltage range of 4.5V to 24V, drawing a maximum of 15.5mA. The switch exhibits a sensing range of 43mT typical trip and 16mT typical release, responding to the south pole. With an output current capability of up to 40mA, the 413SR10 is suitable for applications requiring precise magnetic field detection, commonly found in industrial automation, automotive systems, and consumer electronics. The device operates across a wide temperature range of -40°C to 150°C.
Additional Information
Series: 400SRRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 3-SIP |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 4.5V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 43mT Trip, 16mT Release |
| Current - Output (Max) | 40mA |
| Current - Supply (Max) | 15.5mA |
| Supplier Device Package | - |
| Test Condition | -40°C ~ 150°C |
