XPX30DT
SENSOR 30PSID 0.19"" .253VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

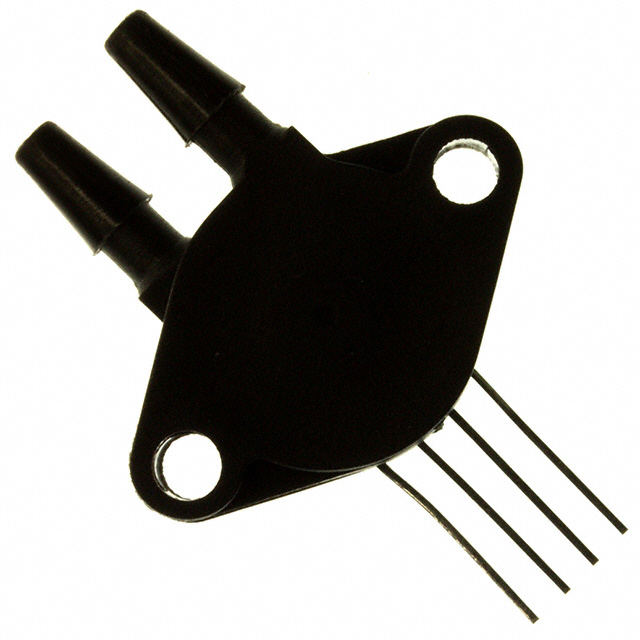

Honeywell Sensing and Productivity Solutions XPX Series differential pressure sensor, part number XPX30DT. This 4-SIP module offers a 30 PSI (206.84kPa) operating pressure range with a ±1% accuracy. The sensor features dual 0.19" (4.83mm) barbed ports for differential pressure measurement and outputs a Wheatstone bridge signal ranging from 0 mV to 253 mV with a 5V excitation. Designed for board mount applications, it operates across a temperature range of -25°C to 85°C and supports supply voltages from 3V to 12V. The maximum pressure rating is 90 PSI (620.53kPa). This component is utilized in various industrial and commercial applications requiring precise differential pressure monitoring.
Additional Information
Series: XPXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 253 mV (5V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Differential |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.19"" (4.83mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 90PSI (620.53kPa) |
