XPC30ATC
SENSOR 30PSIA 0.19"" .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

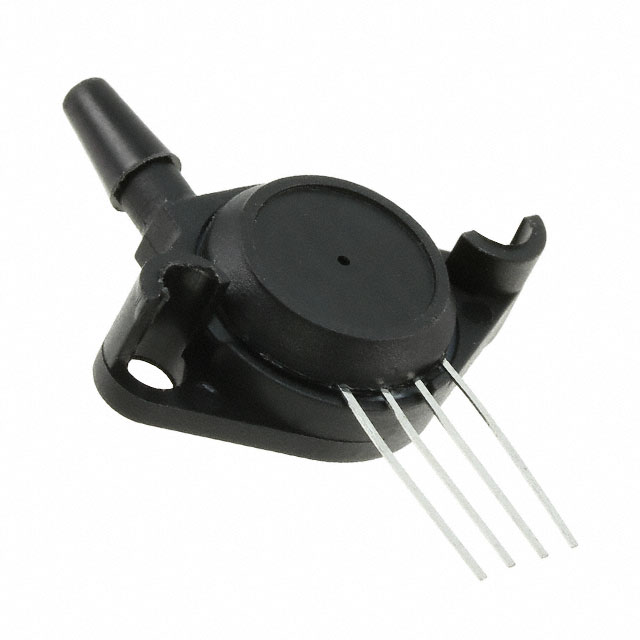

Honeywell Sensing and Productivity Solutions XPC Series XPC30ATC is a robust absolute pressure sensor designed for demanding applications. This 4-SIP module offers a 0 mV to 90 mV output, calibrated for a 30 PSI (206.84 kPa) operating pressure range, with a 12V excitation. Featuring temperature compensation and ±1% accuracy, it provides reliable performance across an operating temperature range of -25°C to 85°C. The sensor incorporates a 0.19" (4.83mm) barbed male port for secure pneumatic connection. Its through-hole mounting facilitates easy integration into printed circuit boards for applications in industrial automation and medical equipment. The Wheatstone bridge output is optimized for a 3V to 16V supply voltage.
Additional Information
Series: XPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19"" (4.83mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 90PSI (620.53kPa) |
