XPC15GTC
SENSOR 15PSIG 0.19"" .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

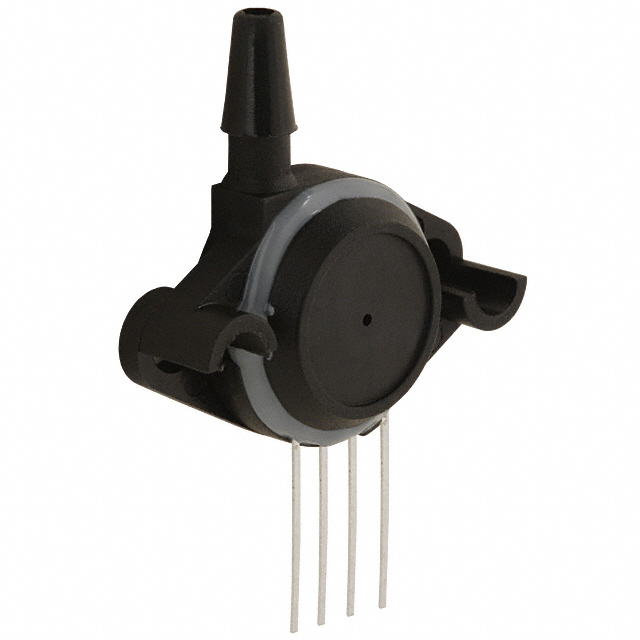

The Honeywell Sensing and Productivity Solutions XPC series XPC15GTC is a high-accuracy, temperature-compensated pressure sensor designed for board mount applications. This vented gauge sensor measures operating pressures up to 15 PSI (103.42 kPa), with a maximum pressure capability of 45 PSI (310.26 kPa). It features a 0.19-inch (4.83mm) barbed male tube port for reliable connection. The XPC15GTC utilizes a Wheatstone bridge output, providing a voltage range of 0 mV to 90 mV at a 12V supply, with an accuracy of ±1%. Operating within a temperature range of -25°C to 85°C and requiring a supply voltage of 3V to 16V, this 4-SIP module is suitable for demanding environments in the industrial and medical sectors.
Additional Information
Series: XPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19"" (4.83mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 45PSI (310.26kPa) |
Request a Quote
Clients Also Buy

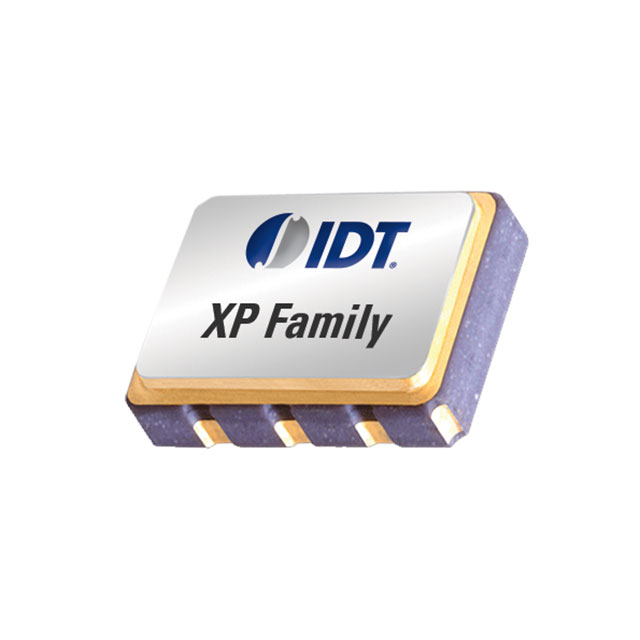

XPC736156.250000I
XTAL OSC XO 156.2500MHZ CML SMD
SCDA135 XPC15ATC
SENSOR 15PSIA 0.19"" .09V

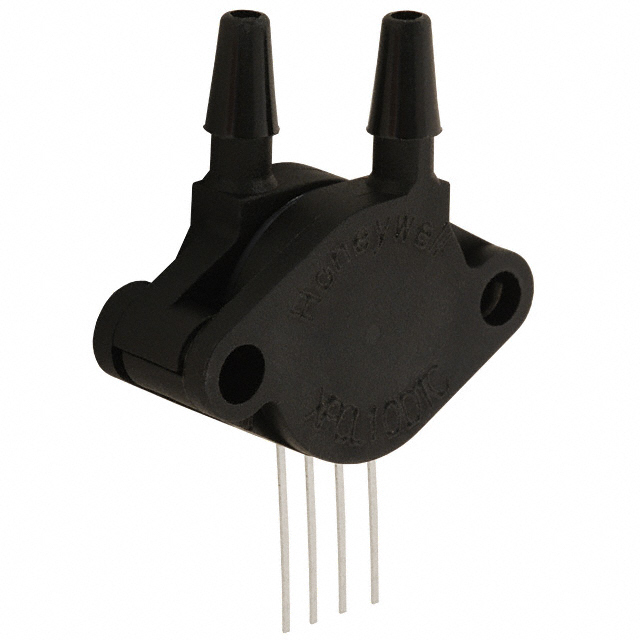

XPC01DTC
