XPC15ATC
SENSOR 15PSIA 0.19"" .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

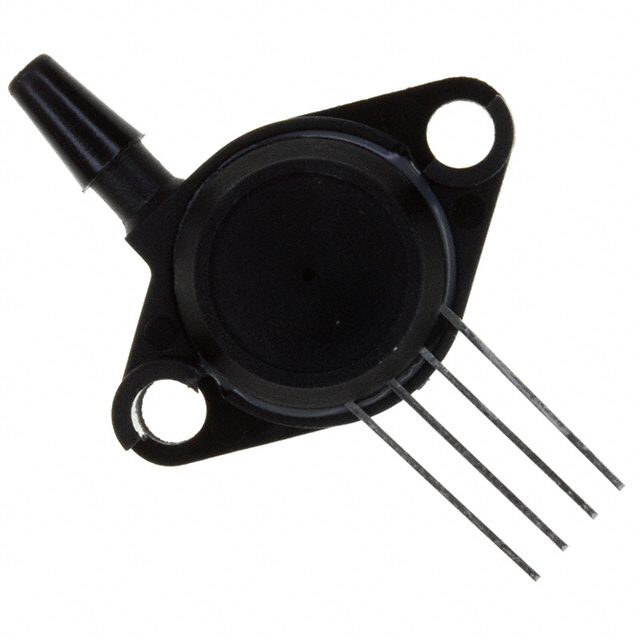

Honeywell Sensing and Productivity Solutions XPC series absolute pressure sensor, part number XPC15ATC. This component features a 15 PSIA (103.42 kPa) operating pressure with a maximum pressure rating of 45 PSI (310.26 kPa). The XPC15ATC utilizes a Wheatstone bridge output, providing a 0 mV to 90 mV range at a 12V excitation. It is packaged as a 4-SIP module with a 0.19" (4.83mm) barbed port for easy tube connection. Designed for board mount applications, this temperature-compensated sensor offers ±1% accuracy and operates across a temperature range of -25°C to 85°C. The voltage supply range is 3V to 16V. This component is suitable for use in various industrial and aerospace applications requiring precise absolute pressure measurement.
Additional Information
Series: XPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19"" (4.83mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 45PSI (310.26kPa) |
