XCX15ANC
SENSOR 15PSIA 0.19"" .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

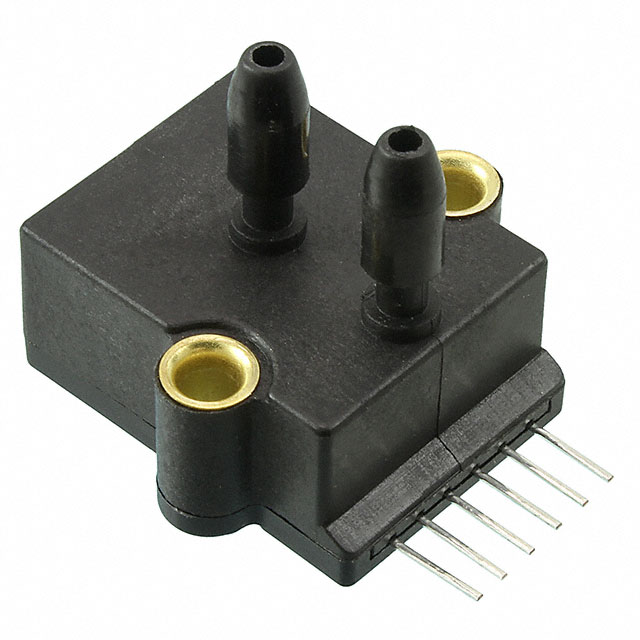

Honeywell Sensing and Productivity Solutions XCX15ANC is an absolute pressure sensor designed for precise measurement applications. This component, part of the XCX series, offers a 0 mV to 90 mV output across a 3V to 16V supply range, utilizing a Wheatstone bridge configuration. The sensor operates within an extended temperature range of -25°C to 85°C and is rated for an operating pressure of 15 PSI (103.42kPa) absolute, with a maximum survivable pressure of 45 PSI (310.26kPa). It features a 0.19-inch (4.8mm) dual barbed port for secure tube connection and a 6-SIP module package suitable for board mounting. Temperature compensation is integrated, enhancing accuracy across varying thermal conditions. This sensor finds utility in sectors such as industrial automation and aerospace.
Additional Information
Series: XCXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19"" (4.8mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 45PSI (310.26kPa) |
