TSCDJJN005PDUCV
SENSOR 5PSID 0.09"" .05V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

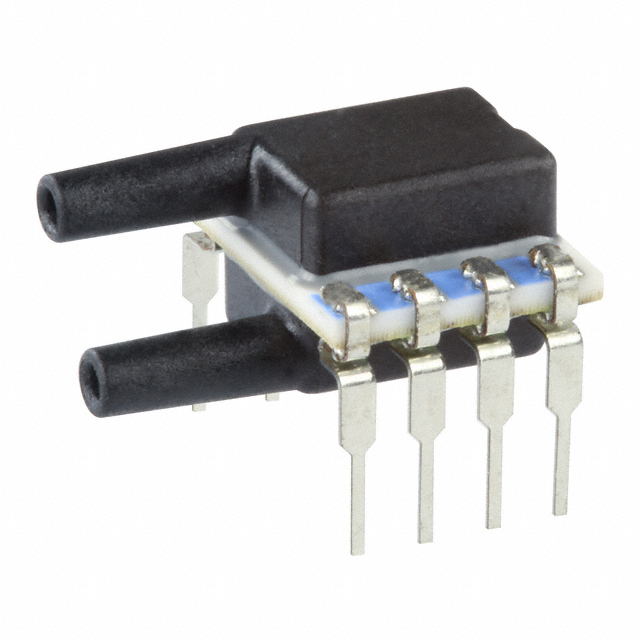

Honeywell Sensing and Productivity Solutions TruStability® TSC series TSCDJJN005PDUCV is a differential pressure sensor. This component offers a ±5 PSI (±34.47 kPa) operating pressure range with a 0 mV to 50 mV output. The sensor features temperature compensation and is housed in an 8-DIP package with dual ports on the same side, utilizing male 0.09" (2.34mm) tubing connections. Designed for board-mount applications, it operates across a temperature range of -40°C to 85°C and is supplied in bulk packaging. This device is suitable for applications requiring precise differential pressure measurement in industrial and medical sectors.
Additional Information
Series: TruStability® TSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Dual Ports, Same Side |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV (5V) |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.15% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.09"" (2.34mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbless |
| Maximum Pressure | ±30PSI (±206.84kPa) |
