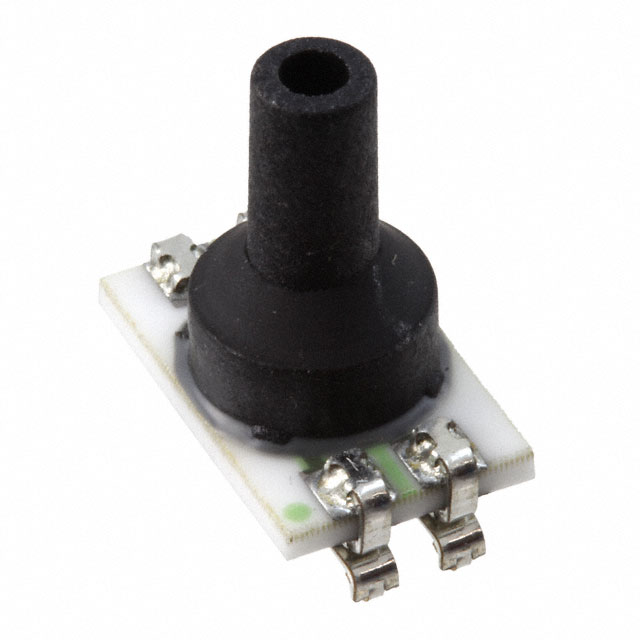

TBPMLNN060PGUCV
SENSOR 60PSIG 0.13"" .0065V 4SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TBP series pressure sensor, part number TBPMLNN060PGUCV, offers a 60 PSI (413.69kPa) vented gauge measurement range. This surface-mount component features a 0 mV to 6.5 mV output across a 1.5V to 12V supply voltage, utilizing a Wheatstone bridge configuration. The sensor is designed with a 0.13" (3.18mm) male tube port and a 4-SMT, J-Lead, top port package. With ±0.15% accuracy and temperature compensation, it is suitable for demanding applications including board mounting in industrial automation and HVAC systems. The operating temperature range is -40°C to 125°C.
Additional Information
Series: TBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 4-SMD, J-Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 6.5 mV (5V) |
| Operating Pressure | 60PSI (413.69kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.15% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SMT |
| Port Style | Barbless |
| Maximum Pressure | 145PSI (999.74kPa) |
