SENSOR 1PSIG 0.11"" .0075V 4SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

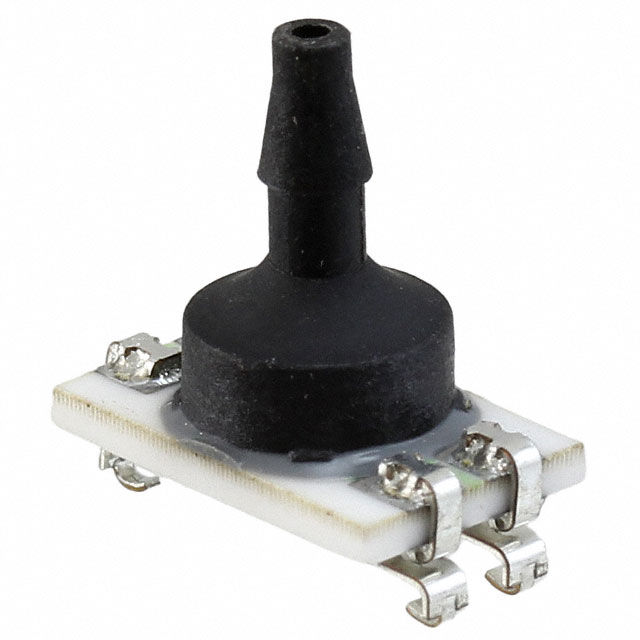

Honeywell Sensing and Productivity Solutions TBP Series 1PSI vented gauge pressure sensor, part number TBPMANN001PGUCV. This surface-mount device offers a 0 mV to 7.5 mV output across a 5V excitation, utilizing a Wheatstone bridge configuration. Designed for board mounting applications, it features temperature compensation and an accuracy of ±0.2%. The sensor operates within a pressure range of 1PSI (6.89kPa) up to a maximum of 12.7PSI (87.56kPa). It includes a 0.11" (2.74mm) barbed tube port and a 4-SMD, J-Lead package with a top port. Operating temperature range is -40°C to 125°C, with supply voltage from 1.5V to 12V. This component is suitable for applications in industrial and medical equipment.
Additional Information
Series: TBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 4-SMD, J-Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 7.5 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.11"" (2.74mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SMT |
| Port Style | Barbed |
| Maximum Pressure | 12.7PSI (87.56kPa) |
