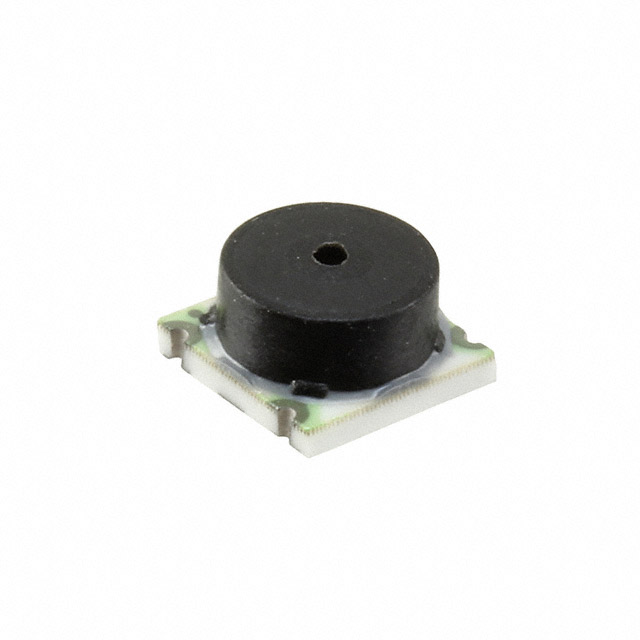

TBPLPNN001PGUCV
SENSOR 1PSIG 0.26"" .0075V 6SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TBPLPNN001PGUCV is a TBP Series Vented Gauge pressure sensor with a 1 PSI (6.89kPa) operating pressure. This surface mount component features a 0 mV to 7.5 mV (5V) Wheatstone bridge output and a ±0.2% accuracy. Designed for board mount applications, it offers temperature compensation and operates across a -40°C to 125°C temperature range. The sensor has a 0.26" (6.5mm) male tube port and is housed in a 6-SMT, No Lead package with a top port. The supply voltage range is 1.5V to 12V. This device is suitable for applications requiring precise pressure measurement in environments such as industrial automation and medical equipment.
Additional Information
Series: TBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 7.5 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.26"" (6.5mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-SMT |
| Port Style | Barbless |
| Maximum Pressure | 12.7PSI (87.56kPa) |
