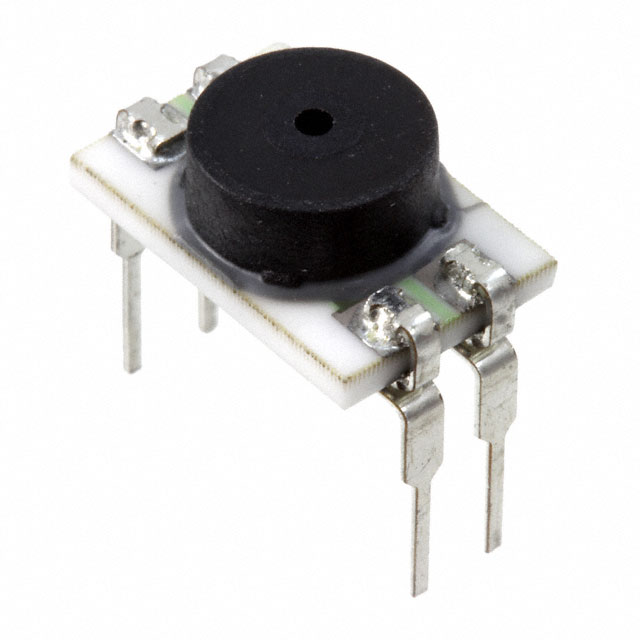

TBPDPNS001PGUCV
SENSOR 1PSIG 0.26"" .0075V 4DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TBP Series TBPDPNS001PGUCV is a vented gauge pressure sensor with an operating pressure of 1 PSI (6.89 kPa). The sensor features a Wheatstone bridge output providing 0 mV to 7.5 mV with a 5V excitation, and a maximum pressure rating of 12.7 PSI (87.56 kPa). This board mount component is temperature compensated with an accuracy of ±0.2% and operates across -40°C to 125°C. The package is a 4-DIP with a top port, designed for through-hole mounting and terminating in PC pins. It includes a male, barbless port for a 0.26" (6.5mm) tube. Applications span industrial, medical, and HVAC sectors.
Additional Information
Series: TBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 4-DIP (0.453"", 11.50mm), Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 7.5 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.26"" (6.5mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-DIP |
| Port Style | Barbless |
| Maximum Pressure | 12.7PSI (87.56kPa) |
