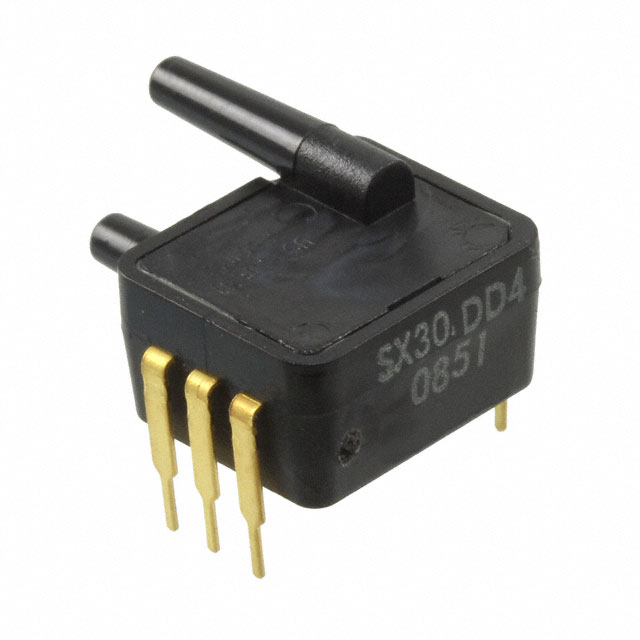

SX30DD4
SENSOR 30PSID 0.09"" .11V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX30DD4 is a differential pressure sensor with an operating range of 30 PSI (206.84 kPa). This component features a Wheatstone bridge output, providing a voltage range of 0 mV to 110 mV when supplied with 5V. Designed for board mounting, the SX30DD4 utilizes a 6-DIP module package with a through-hole mounting type. The port configuration includes dual barbless, male connections with a 0.09-inch (2.28mm) tube size. It operates within a temperature range of -40°C to 85°C and offers an accuracy of ±0.5%. The maximum pressure rating is 90 PSI (620.53 kPa). This sensor is commonly found in industrial automation and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09"" (2.28mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 90PSI (620.53kPa) |
