SX30D
SENSOR 30PSID .11V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

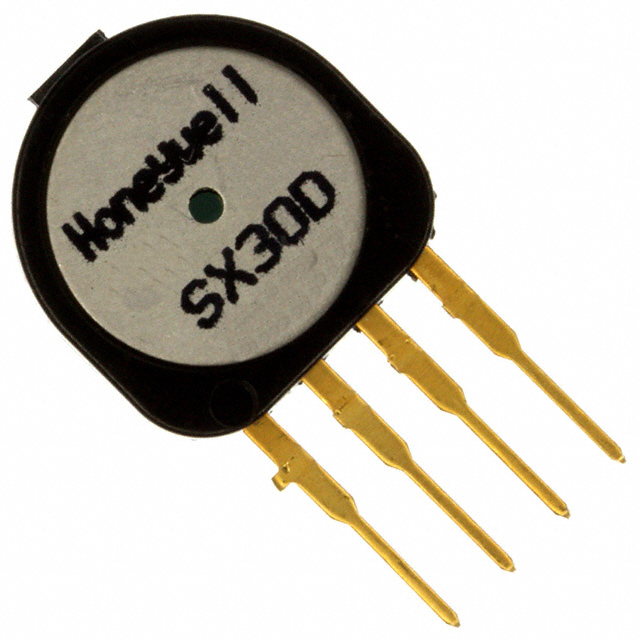

Honeywell Sensing and Productivity Solutions SX30D is a differential pressure sensor with an operating range of 0 to 30 PSI (206.84 kPa). This 4-SIP module features a Wheatstone bridge output, providing a voltage range of 0 mV to 110 mV when supplied with 5V. The device is designed for board mounting and offers an accuracy of ±0.5%. It operates over a temperature range of -40°C to 85°C and has a maximum pressure rating of 90 PSI (620.53 kPa). The SX30D is suitable for various industrial applications requiring precise differential pressure measurement. The component is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 90PSI (620.53kPa) |
