SX30A
SENSOR 30PSIA .11V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

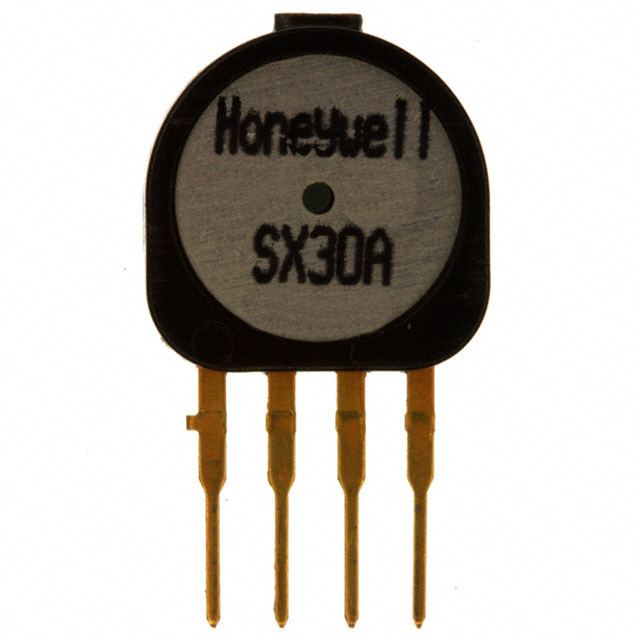

Honeywell Sensing and Productivity Solutions SX30A is an absolute pressure sensor with a 30 PSIA (206.84 kPa) operating range. This Wheatstone bridge sensor provides a 0 mV to 110 mV output across a 5V excitation, featuring a ±0.5% accuracy. Designed for board-level applications, the 4-SIP module has a through-hole mounting type. The device operates from -40°C to 85°C and is suitable for a 12V supply. Its maximum pressure rating is 90 PSI (620.53 kPa). This component is commonly utilized in industrial automation and aerospace applications.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 90PSI (620.53kPa) |
