SX15GSMT
SENSOR 15PSIG .1125VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX SMT series SX15GSMT is a vented gauge pressure sensor with an operating pressure range of 0 to 15 PSI (103.42 kPa). This component features a Wheatstone bridge output, providing a 0 mV to 112.5 mV signal across a 5V excitation. Designed for surface mount applications, it is housed in an 8-SMD module with SMD termination. The sensor offers ±0.5% accuracy and operates within a temperature range of -40°C to 125°C. Its maximum pressure rating is 30 PSI (206.84 kPa). This device is suitable for board mount applications in various industries, including industrial automation and medical instrumentation.
Additional Information
Series: SX SMTRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 112.5 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
Request a Quote
Clients Also Buy

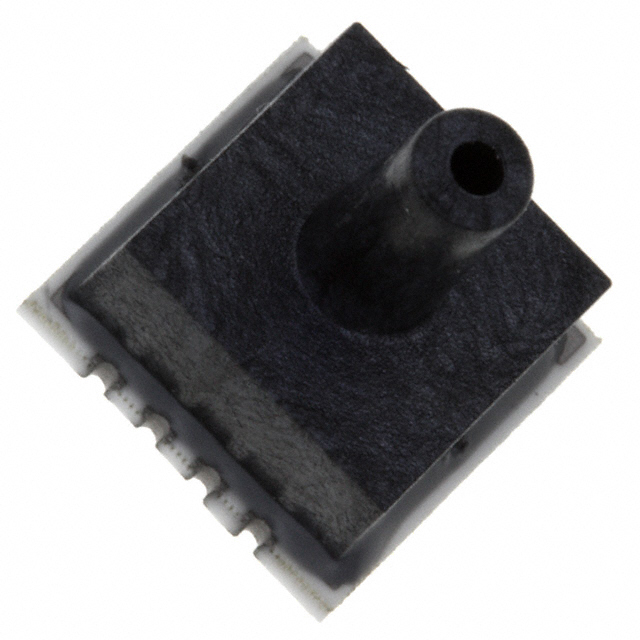

SX100GSMT
SENSOR 100PSIG .15V
SX100GSMT-JB
SENSOR 100PSIG .15V 8SMD

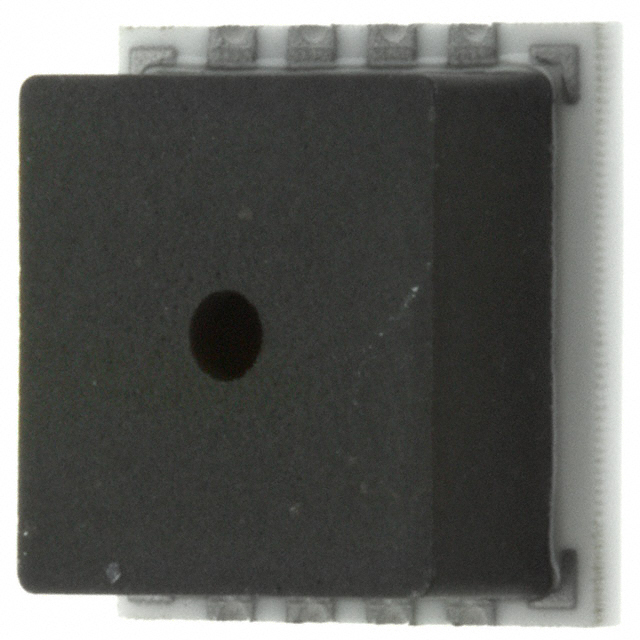

SX150ASMT
