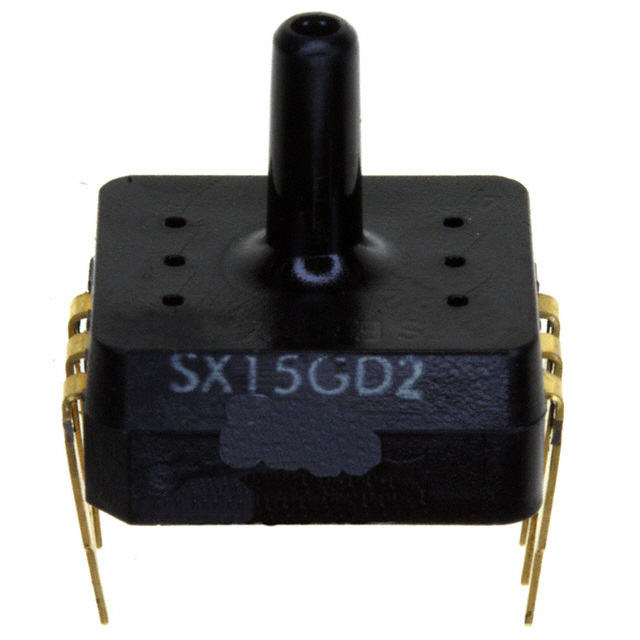

SX15GD2
SENSOR 15PSIG 0.11"" .11V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX15GD2 is a vented gauge pressure sensor designed for board mounting applications. This component features an operating pressure range of 15 PSI (103.42kPa) with a maximum pressure rating of 45 PSI (310.26kPa). The sensor provides an output of 0 mV to 110 mV, utilizing a Wheatstone bridge configuration and requiring a supply voltage of 12V. Its output accuracy is specified as ±0.5%. The SX15GD2 is housed in a 6-DIP module package and includes a male 0.11" (2.67mm) tube port. This device operates within a temperature range of -40°C to 85°C and is suitable for use in industrial automation, medical equipment, and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
