SX15DD4
SENSOR 15PSID 0.09"" .11V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

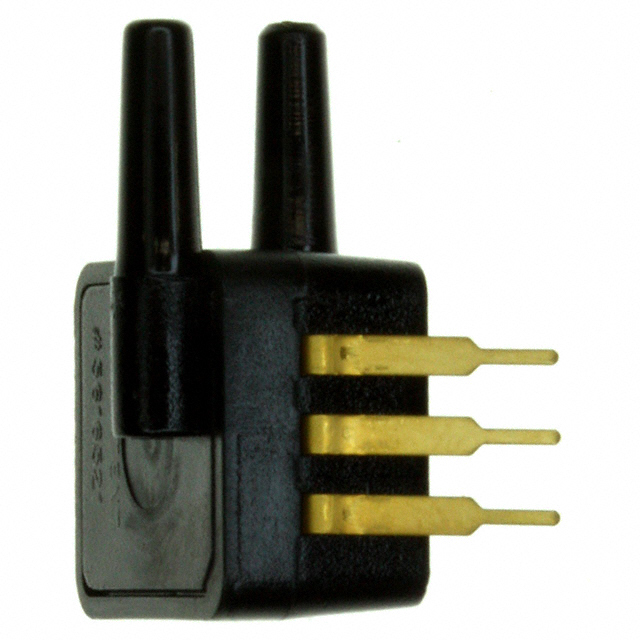

Honeywell Sensing and Productivity Solutions SX15DD4 differential pressure sensor offers a 15 PSI (103.42 kPa) operating range with a ±0.5% accuracy. This 6-DIP module features a dual, barbless port design with a 0.09" (2.28mm) male tube connection. The sensor provides a Wheatstone bridge output ranging from 0 mV to 110 mV when supplied with 5V. Designed for board mounting applications, it operates across a temperature range of -40°C to 85°C and has a maximum pressure rating of 45 PSI (310.26 kPa). The SX15DD4 is suitable for use in various industrial and commercial applications requiring precise differential pressure monitoring.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09"" (2.28mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
