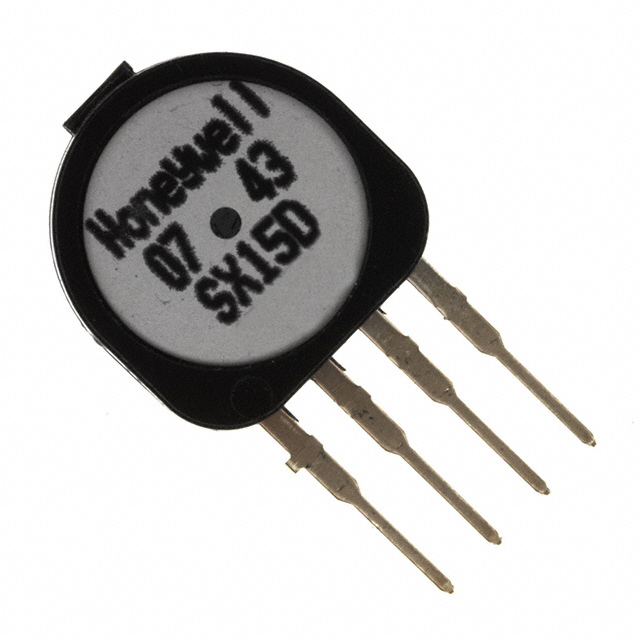

SX15D
SENSOR 15PSID .11V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions SX15D is a differential pressure sensor designed for precise measurement. This 4-SIP module offers an operating pressure range of 15 PSI (103.42 kPa) with a maximum pressure rating of 45 PSI (310.26 kPa). It provides a Wheatstone bridge output ranging from 0 mV to 110 mV, calibrated for a 5V excitation. The sensor features an accuracy of ±0.5% and operates within an extended temperature range of -40°C to 85°C. Designed for board mounting with a through-hole termination style, the SX15D is suitable for applications in industrial automation, HVAC systems, and medical equipment. The component is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
