SX150D
SENSOR 100PSID .11V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

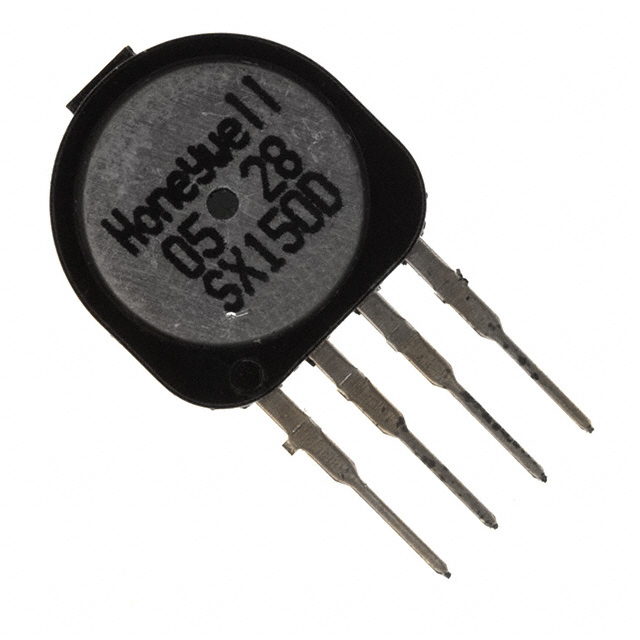

Honeywell Sensing and Productivity Solutions SX150D is a differential pressure sensor with an operating pressure range of 100 PSI (689.48 kPa). This 4-SIP module offers a mV output from 0 mV to 110 mV relative to a 5V excitation. The sensor features a ±0.5% accuracy and is designed for through-hole mounting. Its Wheatstone bridge output is suitable for applications in industrial automation, HVAC systems, and medical equipment. The maximum pressure rating is 200 PSI (1378.95 kPa), and it operates within a temperature range of -40°C to 85°C. The device requires a 12V supply voltage.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 200PSI (1378.95kPa) |
