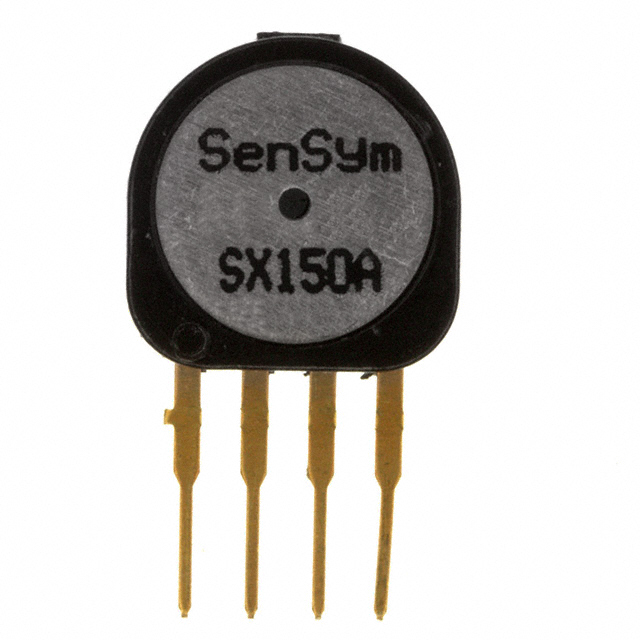

SX150A
SENSOR 100PSIA .11V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX150A is an absolute pressure sensor designed for board-level integration. This 4-SIP module offers a pressure range of 0 to 100 PSIA (689.48 kPa), with a maximum pressure rating of 200 PSIA (1378.95 kPa). The output signal, generated by an internal Wheatstone bridge, varies from 0 mV to 110 mV over a 5V excitation, providing a calibrated output. With an accuracy of ±0.5%, the SX150A is suitable for applications demanding precise pressure measurement. It operates within a temperature range of -40°C to 85°C and is supplied in bulk packaging. This component finds application in various industrial and medical systems requiring accurate absolute pressure monitoring.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 110 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 200PSI (1378.95kPa) |
