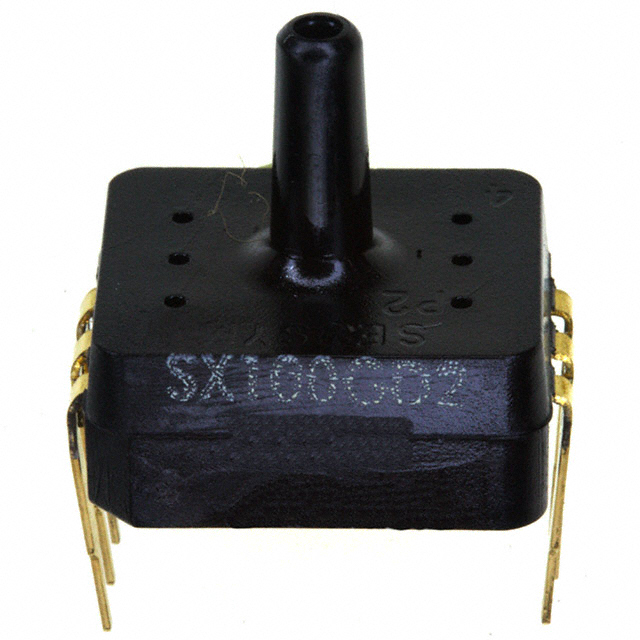

SX100GD2
SENSOR 100PSIG 0.11"" .15V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX100GD2 is a vented gauge pressure sensor with an operating pressure of 100 PSI (689.48 kPa) and a maximum pressure of 150 PSI (1034.21 kPa). This component features a 0 mV to 150 mV output range from a Wheatstone bridge configuration, designed for a 5V excitation. The SX100GD2 has a ±0.5% accuracy and a 0.11" (2.67mm) tube port with a barbless style. It is housed in a 6-DIP module for through-hole mounting and operates within an extended temperature range of -40°C to 85°C. This device is suitable for board mount applications and is commonly utilized in industrial automation and process control systems. The supply voltage is 12V.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 150 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 150PSI (1034.21kPa) |
