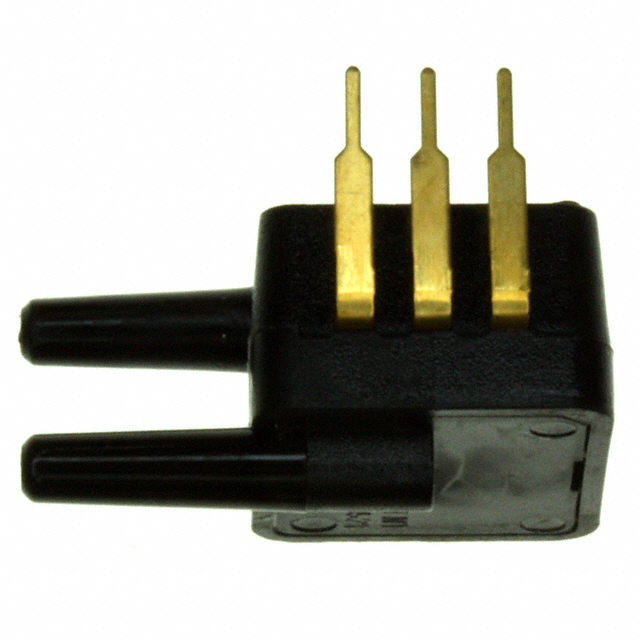

SX100DD4
SENSOR 100PSID 0.09"" .15V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX100DD4 is a differential pressure sensor with an operating pressure range of 0 to 100 PSI (689.48kPa). This device features a 6-DIP module package and a dual male port connection with a 0.09" (2.28mm) tube size. The output signal is a Wheatstone bridge providing a voltage range of 0 mV to 150 mV, designed for a 5V excitation. With an accuracy of ±0.5%, it is suitable for board mount applications and operates across a temperature range of -40°C to 85°C. The sensor is designed for through-hole mounting and is packaged in bulk. This component is utilized in various industrial control systems and instrumentation where precise differential pressure monitoring is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 150 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09"" (2.28mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 150PSI (1034.21kPa) |
