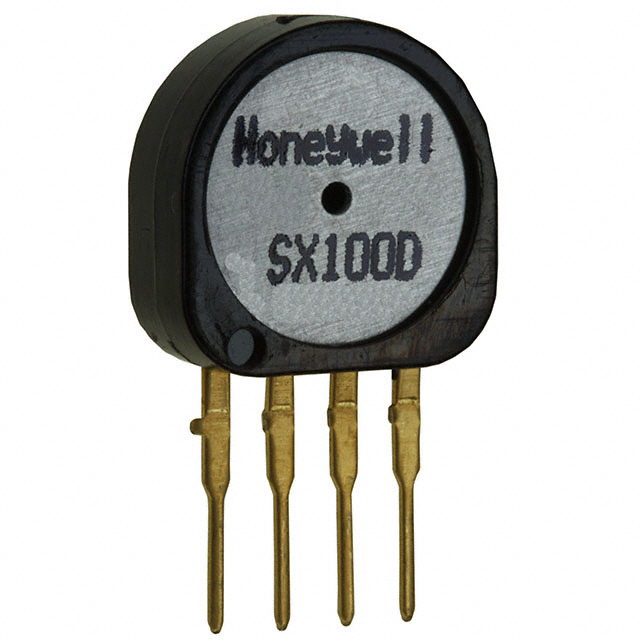

SX100D
SENSOR 100PSID .15V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX100D is a differential pressure sensor with an operating range of 0 to 100 PSI (689.48kPa). This component features a Wheatstone bridge output, providing a voltage signal from 0 mV to 150 mV when supplied with 5V. The sensor offers ±0.5% accuracy and is designed for board mounting applications. Its 4-SIP module package with a button-style supplier device package facilitates through-hole mounting. The operating temperature range is -40°C to 85°C. This device is suitable for applications where precise differential pressure measurement is critical, including industrial automation and HVAC systems. The maximum pressure rating is 150 PSI (1034.21kPa).
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 150 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 150PSI (1034.21kPa) |
