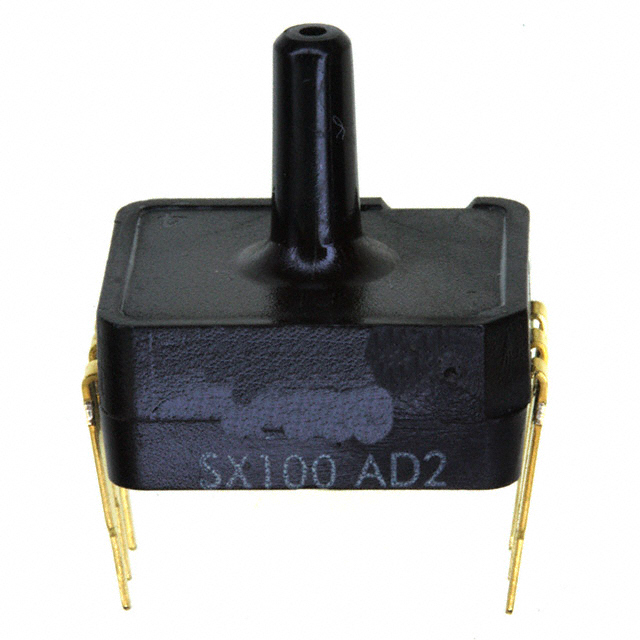

SX100AD2
SENSOR 100PSIA 0.11"" .15V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions SX100AD2 is an absolute pressure sensor designed for precise measurements. This component, part of an unassigned series, features a 6-DIP package and a 0.11-inch (2.67mm) male tube port. It operates within a pressure range of 0 to 100 PSI (689.48kPa), with a maximum pressure rating of 150 PSI (1034.21kPa). The output signal is delivered via a Wheatstone bridge, providing a voltage range of 0 mV to 150 mV when supplied with 5V. The sensor exhibits an accuracy of ±0.5% and is suitable for operation across a temperature range of -40°C to 85°C. This through-hole mountable device is typically utilized in board-mount applications and is supplied in bulk packaging. The SX100AD2 is well-suited for industrial control, aerospace, and medical instrumentation applications where accurate absolute pressure monitoring is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 150 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 150PSI (1034.21kPa) |
