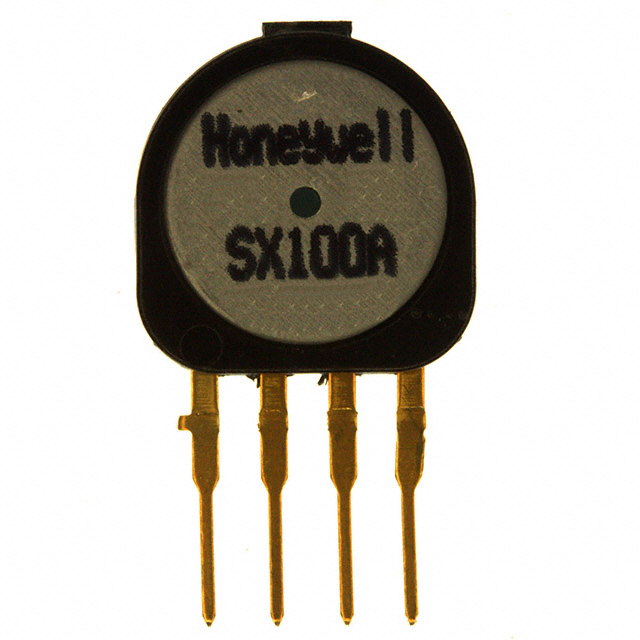

SX100A
SENSOR 100PSIA .15V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX100A is an absolute pressure sensor with an operating pressure of 100 PSI (689.48kPa), designed for sophisticated system integration. This 4-SIP module outputs a voltage range of 0 mV to 150 mV, derived from a Wheatstone bridge configuration, with a 5V excitation. It offers ±0.5% accuracy and is rated for a maximum pressure of 150 PSI (1034.21kPa). The sensor operates within a temperature range of -40°C to 85°C and requires a 12V supply voltage. Featuring a through-hole mounting type and a button-style package, this component is suitable for board-mount applications in industries such as industrial automation, aerospace, and medical equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 150 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 150PSI (1034.21kPa) |
