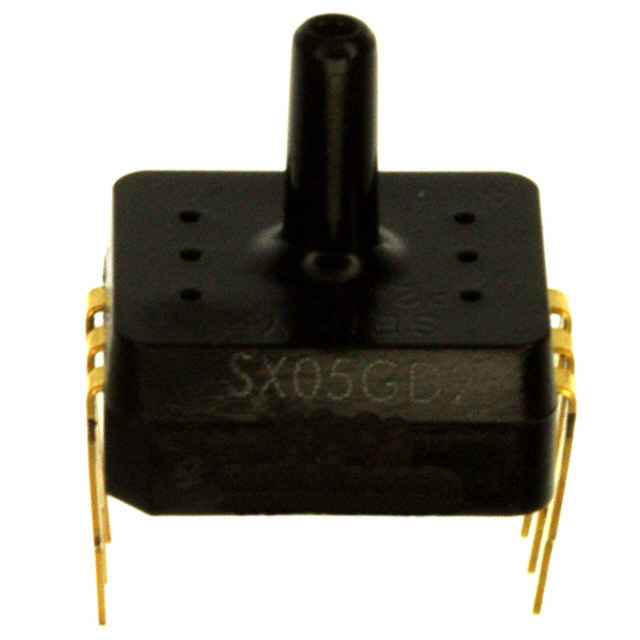

SX05GD2
SENSOR 5PSIG 0.11"" .075V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX05GD2 is a vented gauge pressure sensor designed for board mounting applications. This component operates within a 5 PSI (34.47kPa) range, offering an output from 0 mV to 75 mV, calibrated for a 5V excitation. The sensor features a Wheatstone bridge output and a 0.11" (2.67mm) barbless tube port. With an accuracy of ±0.5%, it is suitable for demanding environments operating between -40°C and 85°C. The 6-DIP module package with through-hole mounting facilitates integration into various electronic systems. The SX05GD2 is utilized in industrial, medical, and automotive sectors where precise pressure monitoring is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
