SX05DD4
SENSOR 5PSID 0.09"" .075V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

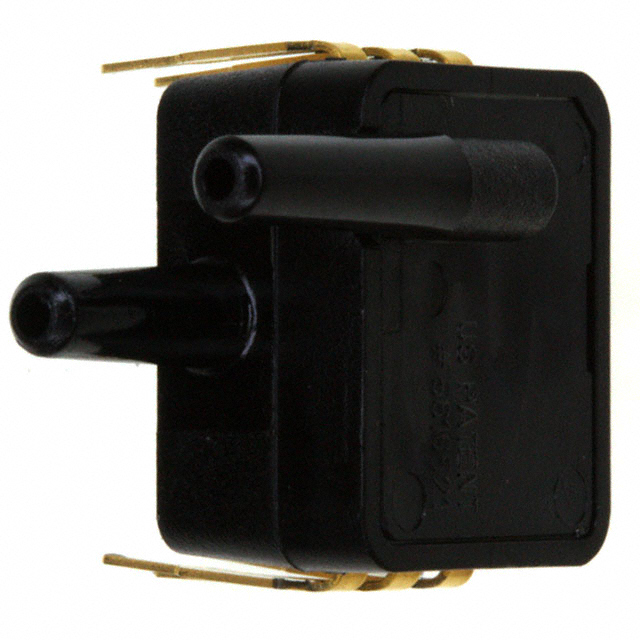

Honeywell Sensing and Productivity Solutions SX05DD4 is a differential pressure sensor with an operating pressure range of 5 PSI (34.47 kPa). This 6-DIP module features dual male ports with a 0.09" (2.28mm) tube size and a barbless port style. The sensor provides an output of 0 mV to 75 mV, utilizing a Wheatstone bridge configuration for its 5V span. It boasts an accuracy of ±0.5% and is designed for through-hole mounting in board-mount applications. The operating temperature range is -40°C to 85°C, with a maximum pressure rating of 20 PSI (137.9 kPa). The device requires a supply voltage of 12V. This component is utilized in various industrial automation and HVAC applications.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09"" (2.28mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
