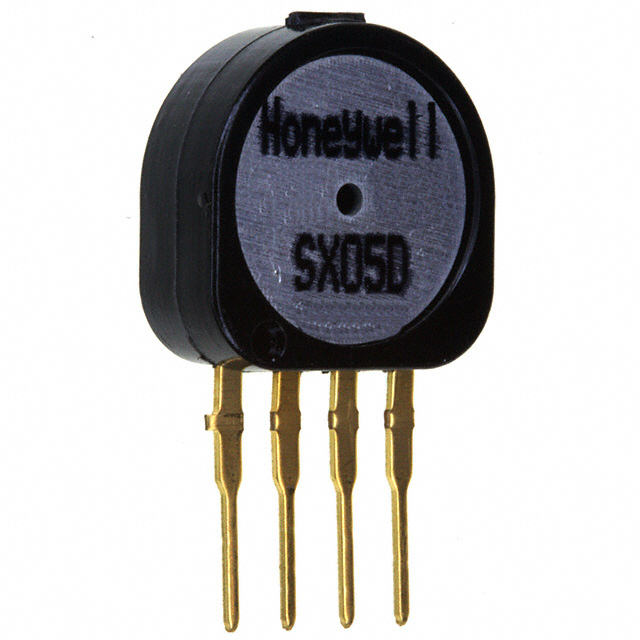

SX05D
SENSOR 5PSID .075V BUTTONManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SX05D, a differential pressure sensor, offers a 0 mV to 75 mV output across a 5V supply. This component is designed for precise measurement of pressures up to 5 PSI (34.47kPa), with a maximum operating pressure of 20 PSI (137.9kPa). Featuring a ±0.5% accuracy rating and a Wheatstone bridge output type, the SX05D is suitable for board mount applications. It operates within a temperature range of -40°C to 85°C and is housed in a 4-SIP Module package. This sensor is commonly utilized in HVAC systems and industrial automation.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Button |
| Port Style | No Port |
| Maximum Pressure | 20PSI (137.9kPa) |
