SX01GD2
SENSOR 1PSIG 0.11"" .02V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

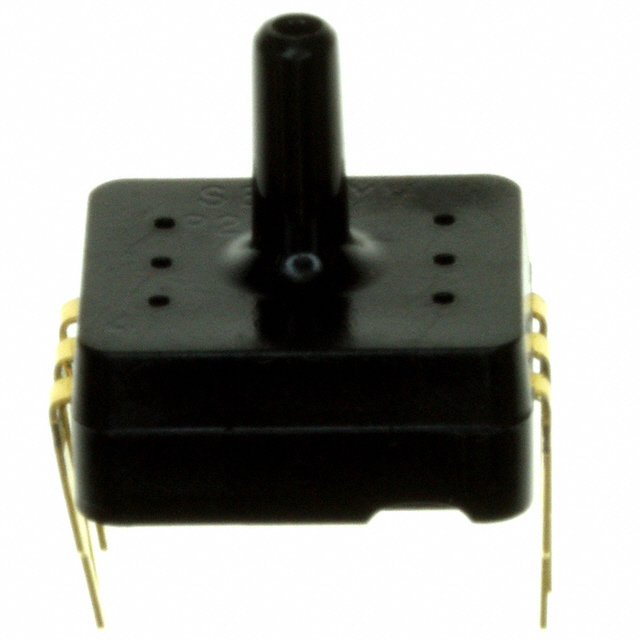

Honeywell Sensing and Productivity Solutions SX01GD2 is a vented gauge pressure sensor designed for board mount applications. This electronic component offers an operating pressure range of 1 PSI (6.89kPa) with a maximum pressure capability of 20 PSI (137.9kPa). The sensor features a 0 mV to 20 mV output across a 5V supply, utilizing a Wheatstone bridge configuration for accurate readings. It is housed in a 6-DIP module with a male, barbless tube port measuring 0.11 inches (2.67mm). The SX01GD2 operates within a temperature range of -40°C to 85°C, with an accuracy of ±0.5%. This sensor is suitable for applications across various industries requiring precise pressure monitoring.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 20 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
