SX01DD4
SENSOR 1PSID 0.09"" .02V 6DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

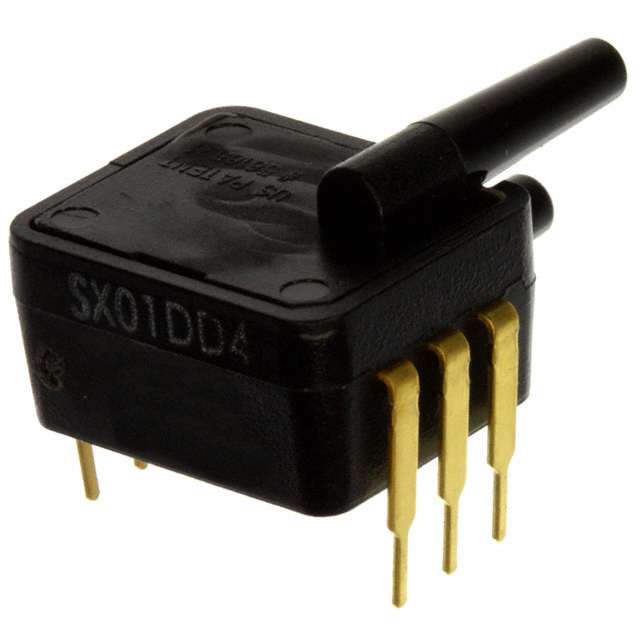

Honeywell Sensing and Productivity Solutions SX01DD4 is a differential pressure sensor designed for board mounting applications. This 6-DIP module, with a part number of SX01DD4, offers a 1 PSI (6.89kPa) operating pressure range. The sensor features dual male ports with a 0.09" (2.28mm) tube size and a barbless port style. The output is a Wheatstone bridge configuration, providing a 0 mV to 20 mV signal when supplied with 5V. This component is suitable for operation across a temperature range of -40°C to 85°C and has a maximum pressure rating of 20 PSI (137.9kPa). The device is packaged in Bulk. Its accuracy is rated at ±0.5%. This sensor is commonly utilized in industrial automation and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 20 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09"" (2.28mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 6-DIP |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
