SSCSRRN400MDAA5
SENSOR 5.8PSID 0.08"" 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

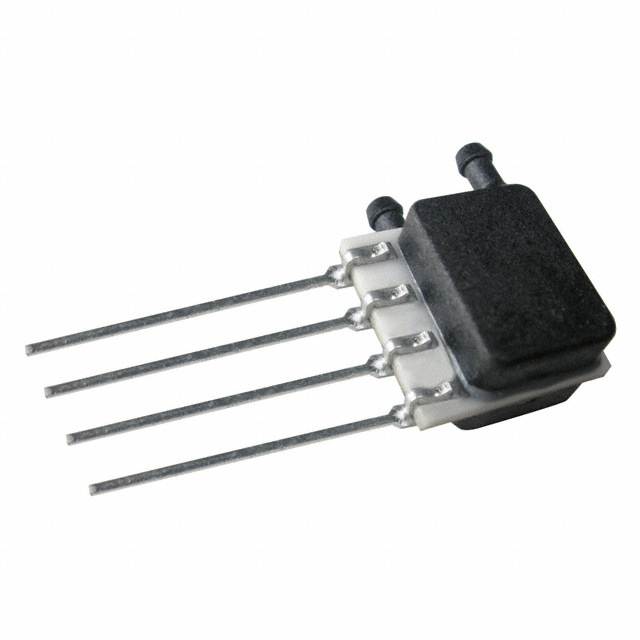

Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCSRRN400MDAA5 is a differential pressure sensor with a ±5.8 PSI (±40 kPa) operating pressure range. This amplified, temperature-compensated sensor provides a 0.5 V to 4.5 V analog voltage output. The 4-SIP package features dual, same-side barbed ports with a 0.08" (1.92mm) tube size for male connections. Designed for board mount applications, it offers ±0.25% accuracy and operates within a -40°C to 85°C temperature range. The supply voltage is 4.75 V to 5.25 V. This component is suitable for industrial and medical applications requiring precise differential pressure monitoring.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±5.8PSI (±40kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08"" (1.92mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | ±29.01PSI (±200kPa) |
