SSCSRNN015PAAA3
SENSOR 15PSIA 0.08"" 2.97V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

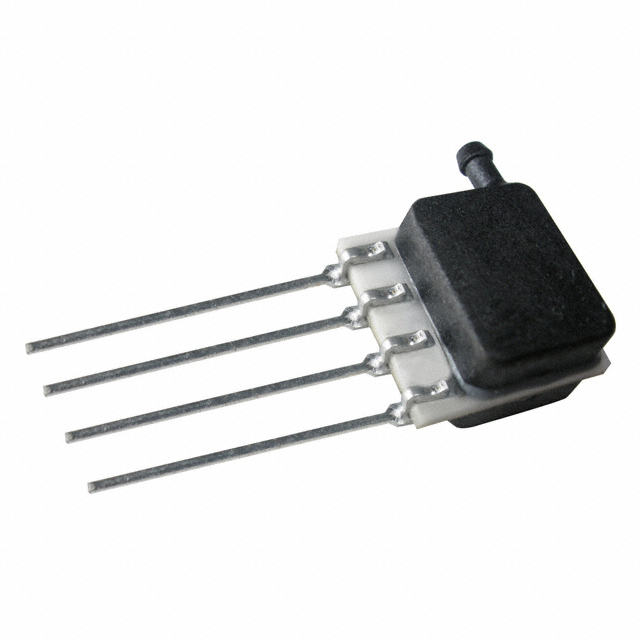

Honeywell Sensing and Productivity Solutions TruStability® SSC Series SSCSRNN015PAAA3 is an amplified, temperature-compensated absolute pressure sensor. This 4-SIP device offers a 15 PSIa (103.42kPa) operating pressure range with a ±0.25% accuracy. The analog voltage output spans 0.33V to 2.97V from a 3V to 3.6V supply. Featuring a side port with an integral 0.08" (1.92mm) barbed tube for direct connection, this sensor is designed for board mounting applications. Its robust construction and operating temperature range of -40°C to 85°C make it suitable for demanding industrial and automotive environments.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.92mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 30PSI (206.84kPa) |
