SSCSLNN015PAAA5
SENSOR 15PSIA 0.1"" 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

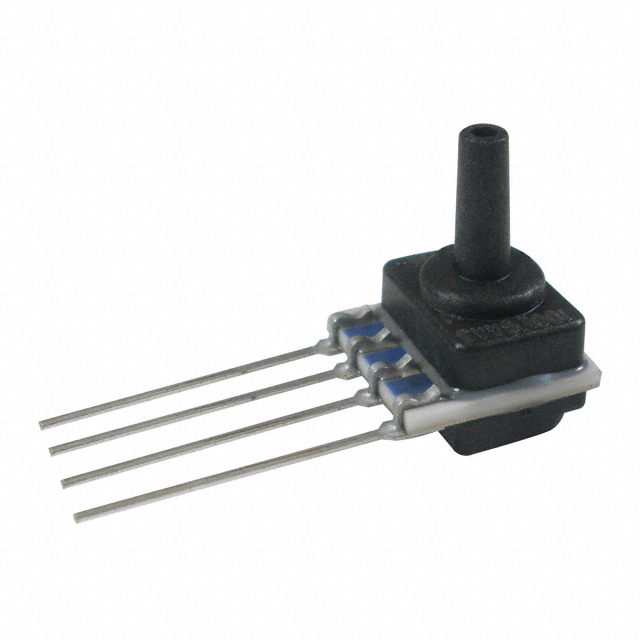

Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCSLNN015PAAA5 is a 15 PSIA absolute pressure sensor with a 0.1" male tube port. This sensor features an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V, with a supply voltage range of 4.75 V to 5.25 V. The SSCSLNN015PAAA5 is designed for board mount applications and offers ±0.25% accuracy. Its operating pressure is 15 PSIA (103.42kPa), with a maximum pressure rating of 30 PSIA (206.84kPa). The component operates within a temperature range of -40°C to 85°C and is housed in a 4-SIP package with a side port and PC pin termination. This sensor is utilized in various industrial automation and medical device applications.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.1"" (2.47mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
