SSCSHHT250MD3A3
SENSOR 3.63PSID 0.16"" 12BIT 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

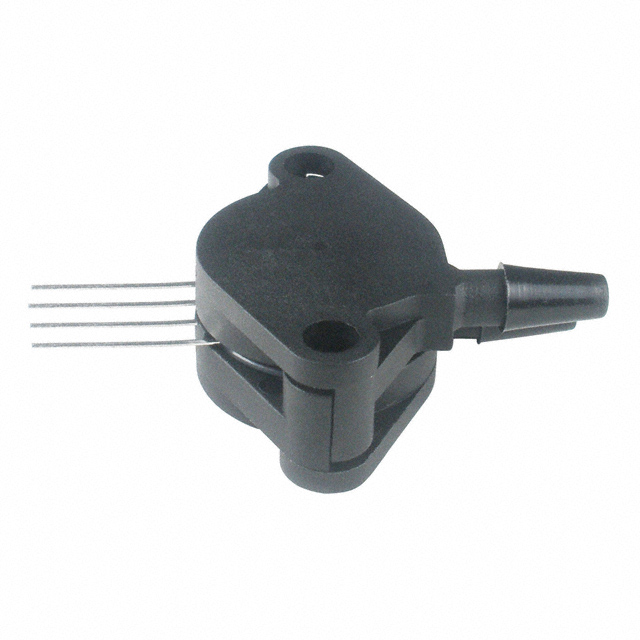

Honeywell Sensing and Productivity Solutions SSCSHHT250MD3A3 is a TruStability® SSC series differential pressure sensor. This component features a ±3.63 PSI (±25 kPa) operating pressure range with ±0.25% accuracy. The sensor offers an amplified, temperature-compensated output via an I2C interface, utilizing a dual 12-bit digital resolution. It is designed for board mount applications with a through-hole mounting type and PC pin termination. The package is a 4-SIP with dual, same-side barbed ports, each accepting a 0.16" (3.94mm) tube. Operating across a temperature range of -40°C to 85°C and requiring a supply voltage of 3V to 3.6V, this sensor is suitable for various industrial and medical applications requiring precise differential pressure measurement and monitoring.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | ±3.63PSI (±25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.16"" (3.94mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | ±20.31PSI (±140kPa) |
