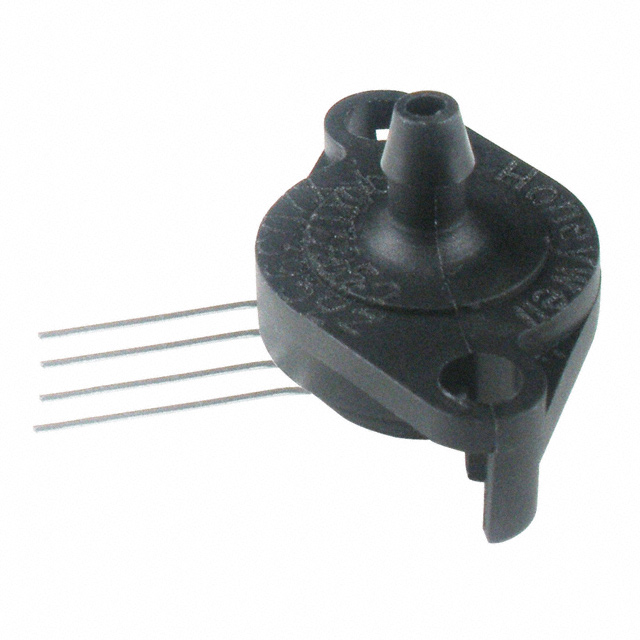

SSCSFNN001PGAA5
SENSOR 1PSIG 0.19"" 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCSFNN001PGAA5 is a vented gauge pressure sensor designed for board mounting applications. This component precisely measures 1 PSI (6.89 kPa) with an accuracy of ±0.25%. It features an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V, driven by a supply voltage of 4.75 V to 5.25 V. The sensor is housed in a 4-SIP package with a side port and a barbed male port for a 0.19" (4.78mm) tube connection. Operating across a temperature range of -40°C to 85°C, it is suitable for demanding environments found in industrial automation and medical equipment. The through-hole mounting and PC pin termination facilitate robust integration into circuit designs.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 10PSI (68.95kPa) |
