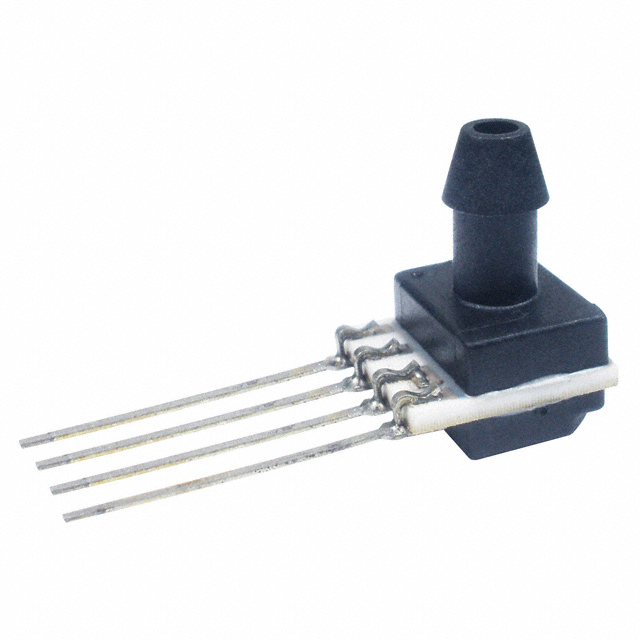

SSCSANN250MDAA5
SENSOR 3.63PSID 0.19"" 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® SSC SSCSANN250MDAA5 is a highly accurate differential pressure sensor designed for demanding applications. This component offers a ±3.63 PSI (±25 kPa) operating pressure range with a ±0.25% accuracy over the full scale. The sensor provides an amplified analog voltage output ranging from 0.5 V to 4.5 V, indicative of the measured differential pressure. It features temperature compensation and is optimized for board mounting applications, including industrial automation, medical equipment, and HVAC systems. The device operates from a supply voltage of 4.75 V to 5.25 V and features a 0.19-inch barbed male port for differential pressure measurement. The 4-SIP package with PC pin termination facilitates through-hole mounting. The operating temperature range is -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±3.63PSI (±25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19"" (4.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | ±20.31PSI (±140kPa) |
