SSCMLND015PDSA5
SENSOR 15PSID 0.1"" 12BIT 8SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

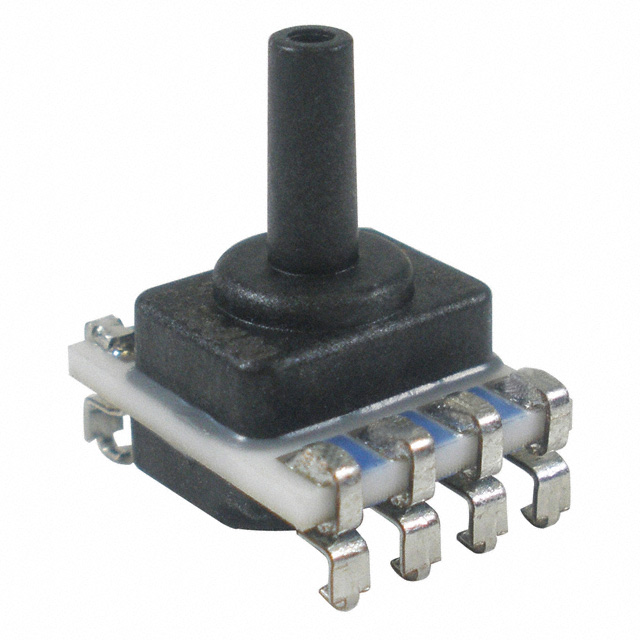

Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCMLND015PDSA5 is a digital differential pressure sensor. This component offers a ±15 PSI (±103.42 kPa) operating pressure range with a ±0.25% accuracy. The sensor features an amplified, temperature-compensated output via SPI, providing a 12-bit resolution. It is designed for board mount applications and utilizes a surface mount, 8-SMT, J-Lead package with a top port connection for a 0.1" (2.47mm) tube. The device operates within a voltage supply range of 4.75V to 5.25V and an ambient temperature range of -40°C to 85°C. This sensor is suitable for demanding applications across various industries including industrial automation, medical equipment, and HVAC systems.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead, Top Port |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | ±15PSI (±103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.1"" (2.47mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-SMT |
| Port Style | Barbless |
| Maximum Pressure | ±30PSI (±206.84kPa) |
