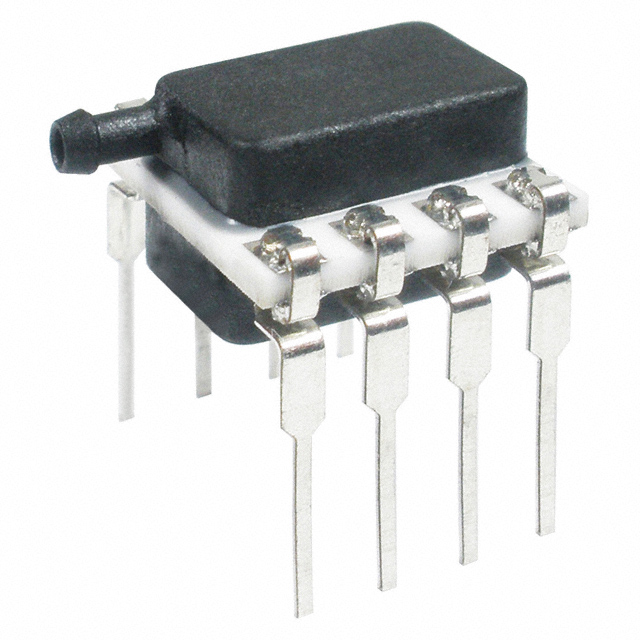

SSCDRNN160MDAA5
SENSOR 2.32PSID 0.08"" 4.5V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCDRNN160MDAA5 is a differential pressure sensor designed for demanding applications. This component features an analog voltage output ranging from 0.5 V to 4.5 V, with a supply voltage of 4.75 V to 5.25 V. It offers a highly accurate ±0.25% total error band with a calibrated pressure range of ±2.32 PSI (±16 kPa). The sensor utilizes a side port male barbed connection for a 0.08" (1.93mm) tube. Operating within a temperature range of -40°C to 85°C, this amplified and temperature-compensated device is ideal for board mount applications. The 8-DIP package facilitates through-hole mounting. This sensor is commonly found in industrial automation, medical instrumentation, and HVAC systems.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±2.32PSI (±16kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | ±20.31PSI (±140kPa) |
