SSCDNNN1.6BA2A3
SENSOR 23.21PSIA 12BIT 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

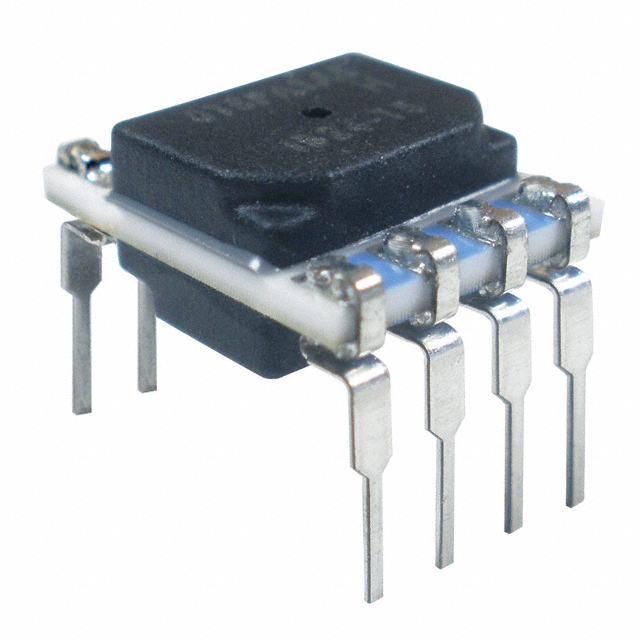

Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCDNNN1-6BA2A3 is an absolute pressure sensor with an operating pressure of 23.21 psi (160 kPa). This board mount component features an amplified and temperature-compensated output with I2C interface, providing a 12-bit resolution. The sensor is housed in an 8-DIP package with a PC pin termination style. It operates within a voltage supply range of 3V to 3.6V and maintains an accuracy of ±0.25%. The maximum pressure rating is 58.02 psi (400 kPa), and the operating temperature range is -40°C to 85°C. This component is suitable for applications in industrial and medical equipment.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm) |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 23.21PSI (160kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | No Port |
| Maximum Pressure | 58.02PSI (400kPa) |
