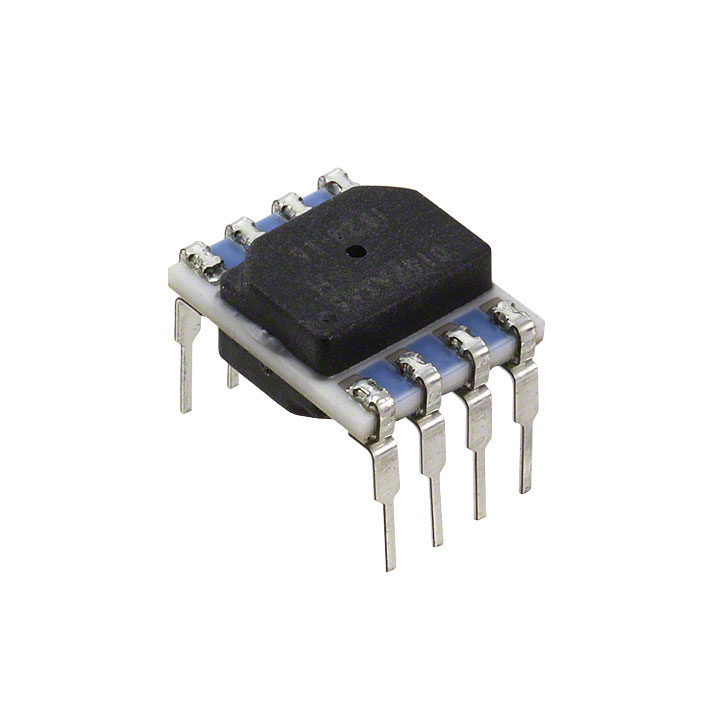

SSCDNNN015PASA5
SENSOR 15PSIA 12BIT 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® SSC series pressure sensor, part number SSCDNNN015PASA5, is designed for absolute pressure measurement. This component provides a 15 PSI (103.42kPa) operating pressure range with an accuracy of ±0.25%. The output is a 12-bit digital SPI interface, offering amplified and temperature-compensated readings. Housed in an 8-DIP package with a PC pin termination style, this sensor is suitable for board mount applications. It operates within a voltage supply range of 4.75V to 5.25V and a temperature range of -40°C to 85°C. The TruStability® SSC series is frequently utilized in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm) |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
