SSCDLNT150PAAA5
SENSOR 150PSIA 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

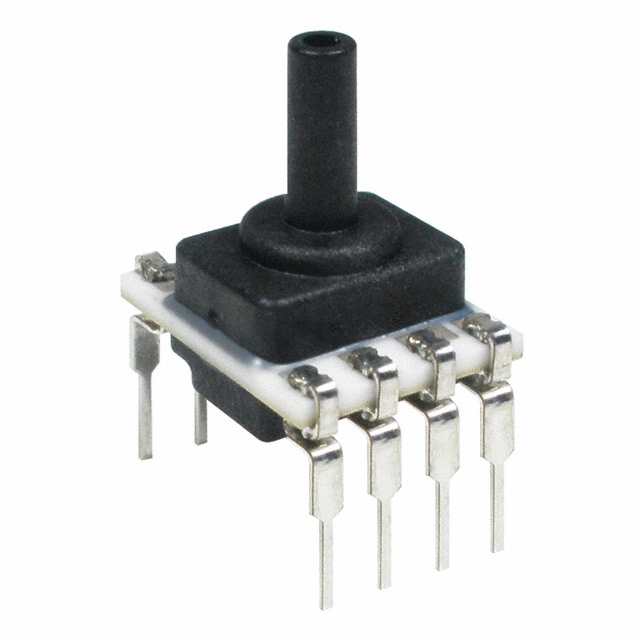

Honeywell Sensing and Productivity Solutions TruStability® SSC series SSCDLNT150PAAA5 is an absolute pressure sensor with an 8-DIP (0.524", 13.30mm), top port package. This amplified, temperature-compensated sensor operates at 150PSI (1034.21kPa) and features ±0.25% accuracy. The device is designed for board mount applications and accepts a supply voltage of 4.75V to 5.25V. Its through-hole mounting and PC pin termination facilitate integration into various systems. The maximum pressure rating is 250PSI (1723.69kPa), and it operates within a temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, medical equipment, and HVAC systems.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | - |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbless |
| Maximum Pressure | 250PSI (1723.69kPa) |
